| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Diameter | |
| Connector Type | |
| Contact Material | |
| Features | |
| Gender | |
| Ground Terminal Material | |
| Housing Material | |
| Industry Recognized Mating Diameter | |
| Insulation Color | |
| Internal Switch(s) | |
| Mating Pin Diameter | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions/Contacts | |
| Panel Hole Diameter | |
| Shielding | |
| Shunt Terminal Material | |
| Signal Lines | |
| Spring Contact Material | |
| Termination | |
| Termination Style | |
| internal_switch |

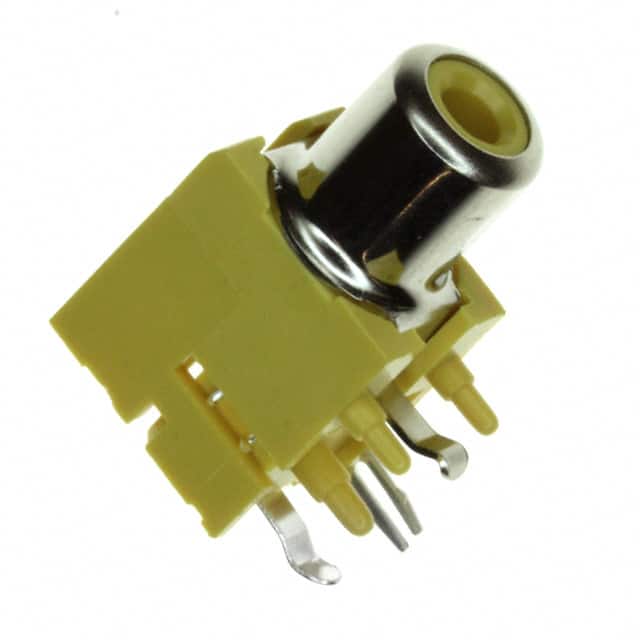

The Keystone Electronics 973 is a female RCA phono jack designed for through hole right angle mounting on a printed circuit board. It accepts a standard 3.20mm ID / 9.00mm OD RCA plug and features a mono signal line with a single internal switch. The connector is unshielded and includes a board lock feature for secure retention during wave soldering.
The housing is molded from PBT (Polybutylene Terephthalate) in a yellow color for easy circuit identification. The main contact is made of nickel-plated brass, the spring contact is silver-plated phosphor bronze, and the shunt terminal is silver-plated brass. The ground terminal is nickel-plated brass. The connector mates with a 3.12mm diameter pin and mounts in a 7.6mm panel hole.
This connector is suitable for audio and signal applications where a reliable, low-profile RCA connection is required. The right angle orientation allows for low-profile PCB mounting, and the board lock feature provides mechanical stability during assembly.
Through hole, right angle.
3.12 mm (0.125 inches).
No, it is unshielded.
Yellow.
Yes, it has a single internal switch.
