| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40,374 pcs
|
40374 pcs | On Request | 1 | On Request | On Request | 25+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Fastening Type | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Termination Style |

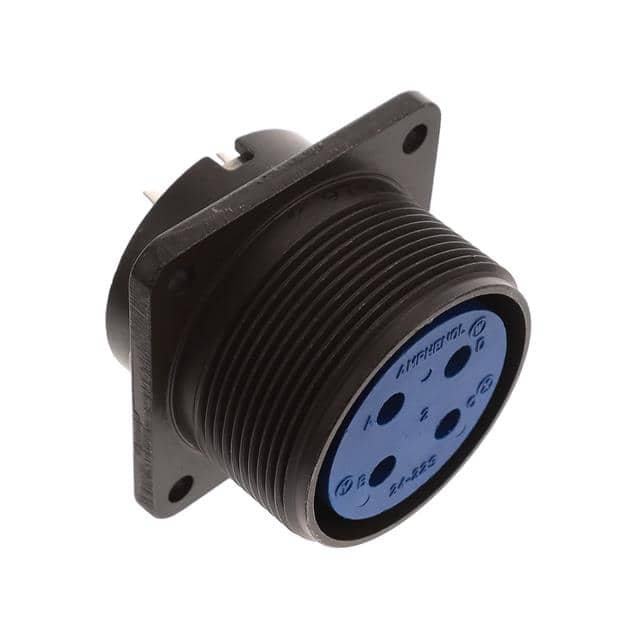

The 97-3102A24-22S is a circular connector receptacle manufactured by Amphenol Industrial Operations. It is designed for panel mount installations with a flange mounting feature. The connector accepts female sockets and provides 4 positions with a shell size of 24-22. Termination is via solder cup, offering reliable wire connections. The fastening type is threaded, ensuring secure mating in vibration-prone environments.\n\nThe shell is constructed from aluminum alloy with an olive drab chromate over cadmium finish, providing corrosion resistance and durability. Contacts are finished with silver for good conductivity. The connector is unshielded and has a normal orientation. Operating temperature range is -55°C to 125°C, making it suitable for extreme environments. Compliance with RoHS3 and REACH is claimed but unverified, and MSL is rated at 1 (unlimited).\n\nThis connector is intended for use in circular connector assemblies, commonly found in industrial, military, and aerospace applications where ruggedness and reliability are required. The solder cup termination allows for field wiring, and the panel mount design simplifies installation.
| Qty | Low | High |
|---|---|---|
| 1+ | $74.96 | $74.96 |
| 10+ | $46.44 | $46.44 |
| 50+ | $45.63 | $45.63 |
| 100+ | $42.53 | $42.53 |
| 250+ | $41.34 | $41.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
Panel mount with flange.
Solder cup.
-55°C to 125°C.
Aluminum alloy with olive drab chromate over cadmium finish.
Threaded.
No, it is unshielded.
