| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

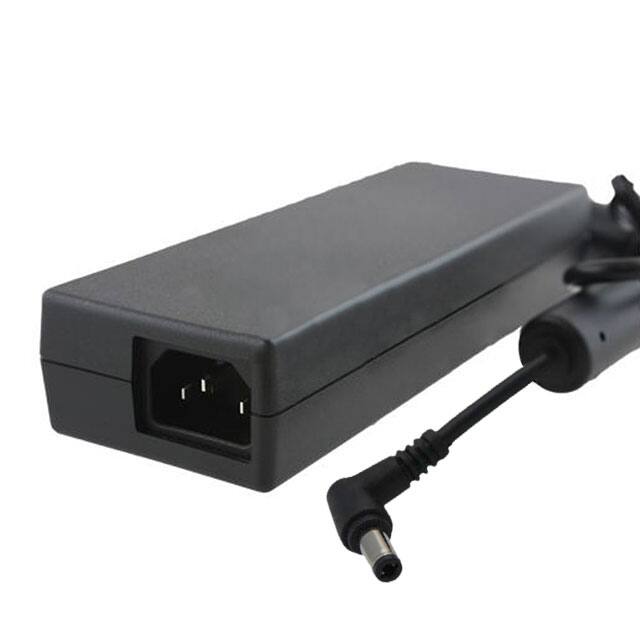

The Advantech Corp 96PSA-A60W12R1-1 is a versatile 60W AC/DC desktop power supply designed for commercial ITE applications. It delivers a stable 12VDC output at 5A, with a minimum efficiency of 88% and meeting Energy Star EPS 2.0 and ErP Lot 7 requirements.
This adapter operates with a full-range AC input from 90V to 264V, making it suitable for international use. It features a low no-load power consumption of 0.21W maximum and is designed for high reliability, capable of operating at altitudes up to 5,000 meters. The unit complies with DOE Level VI efficiency standards.
Mechanically, the adapter has dimensions of 110 x 62.2 x 31.3mm and utilizes a standard IEC 320-C14 input connector. The output is provided via a barrel plug with a 2.5mm inner diameter and 5.5mm outer diameter. It is rated for an operating temperature range of 0°C to 40°C and has an MTBF of 100,000 hours at 25°C.
The adapter provides an output of 12VDC at 5A.
The power rating is 60W.
The input voltage range is 100 - 240VAC.
The operating temperature range is 0°C to 40°C.
Yes, it meets DOE Level VI efficiency standards and Energy Star EPS 2.0 / ErP Lot 7.
The dimensions are 110 x 62.2 x 31.3mm.
The MTBF is 100,000 hours at 25°C.
