| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Tape & Reel | |
| Voltage | |
| Width |

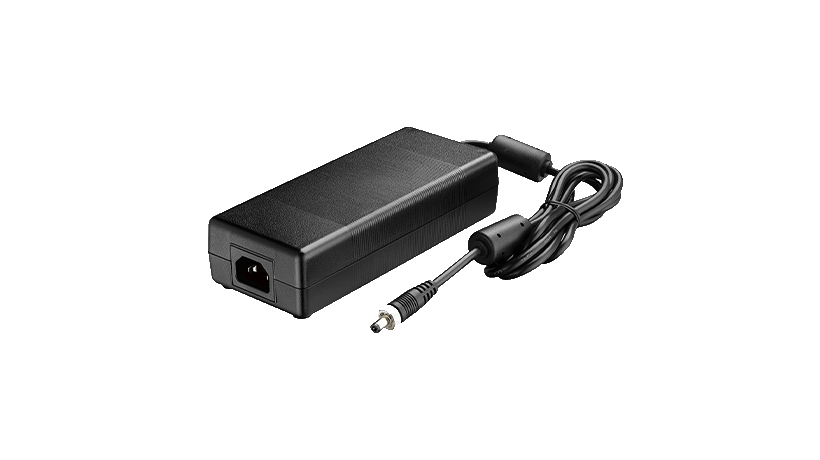

This Advantech 96PSA-A36W12R1-3 is a versatile AC/DC desktop power adapter designed for ITE (Commercial) applications. It delivers a stable 12V output with a maximum current of 3A, providing a total power of 36W. The adapter features a Level VI efficiency rating, ensuring optimal energy consumption.
Designed for international use, it utilizes an IEC 320-C6 input connector and comes with a 1.50m cord. The output is delivered via a standard barrel plug with a positive center, measuring 2.5mm ID and 5.5mm OD, with a length of 11.0mm. The compact dimensions of 89.8mm x 37.8mm x 27.0mm make it suitable for various setups. The operating temperature range is from 0°C to 40°C, and it consumes a maximum of 100mW at no load.
Key compliance and safety certifications include CB, CCC, CE, cUL, FCC, GS, PSE, and RCM. The adapter is RoHS3 compliant and has an MSL rating of 1.
The adapter provides a 12V output at 3A.
The power rating is 36W.
The adapter meets Level VI efficiency standards.
The dimensions are 89.8mm x 37.8mm x 27.0mm.
The operating temperature range is 0°C to 40°C.
It uses an IEC 320-C6 input connector.
The RoHS status is RoHS3 Compliant.
