| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Plating | |
| Contact Type | |
| Current Rating | |
| Dielectric Material | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style | |
| Wire Gauge |

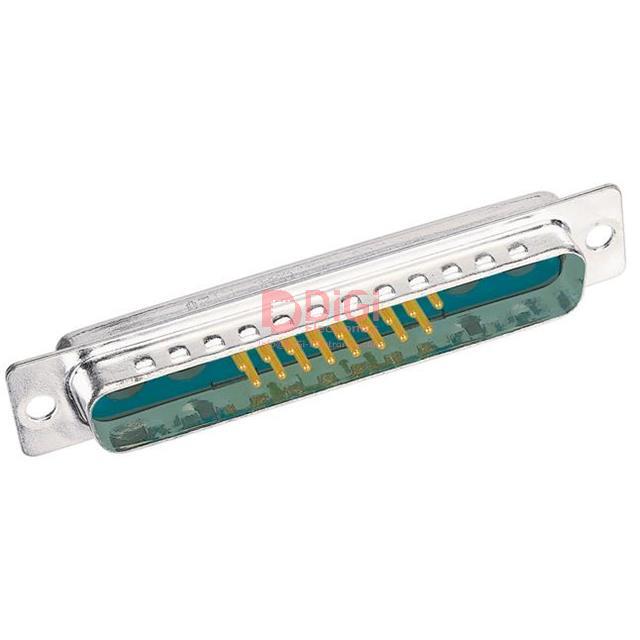

This HARTING 9693115172 is a D-Sub Combo Plug connector assembly featuring 17 positions, comprising 15 standard signal contacts and 2 coax or power contacts. It is designed for free-hanging, in-line applications and utilizes a solder cup termination style.
The connector has a current rating of 5A and operates within a temperature range of -55°C to 125°C. The housing is made of steel with tin plating, and the contacts are plated with gold or gold-palladium to a thickness of 30.0µin. The dielectric material is Polyester Thermoplastic, Glass Filled, and the housing meets UL94 V-0 flammability rating.
This component is suitable for various industrial applications requiring robust and reliable connections. Its construction ensures durability and performance in demanding environments. The connector's shell size and layout are specified as 3 (DB, B) - 17W2.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 17 positions in a 17W2 layout: 15 standard signal positions and 2 coax or power positions.
The current rating is 5A.
Free hanging (in-line).
Solder cup.
-55°C to 125°C.
No, the signal and coax or power contacts are not included.
