| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,260 pcs
|
13260 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8,703 pcs
|
8703 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Centerline (Pitch) | |
| Circuit Application | |
| Connector System | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mating Pin Diameter | |
| Mounting Type | |
| Nominal Voltage Architecture | |
| Number of Positions | |
| Operating Temperature Range | |
| Orientation | |
| Primary Locking Feature | |
| Sealable | |
| Shell Material | |
| Shielding | |
| Type |

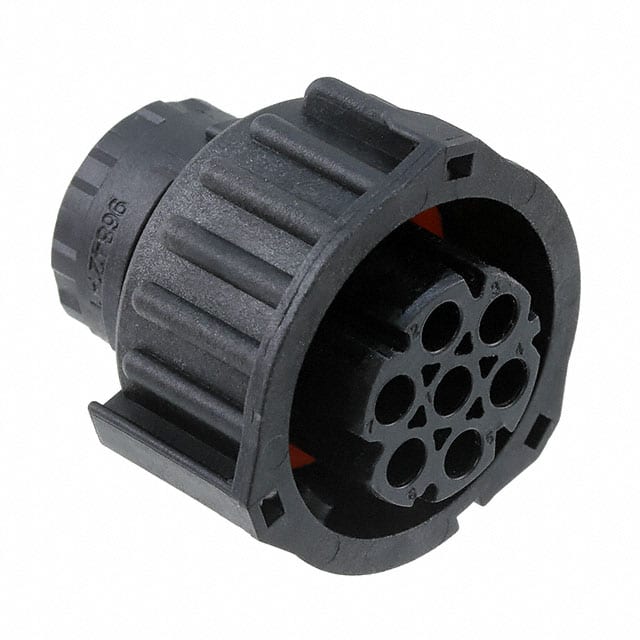

This is a 7-position circular connector plug housing from TE Connectivity Deutsch Connectors, part of the Circular DIN family. It is designed for female sockets and features a free hanging (in-line) mounting style with a bayonet lock for secure mating. The housing is constructed from a glass-filled polybutylene terephthalate (PBT) material, rated UL94 HB for flammability, and is black in color.
The connector supports a wire-to-wire system and is intended for signal circuit applications. It accepts 1.5 mm crimp contacts and has a centerline pitch of 7 mm. The housing is unshielded and includes a coupling nut feature. It is sealable and offers IP67/IP69K ingress protection, making it suitable for harsh environments.
The operating temperature range is -40°C to 120°C. The nominal voltage architecture supports 12 V, 24 V, 42 V, and 48 V systems. The primary locking feature is integrated in the housing and on the terminal. The orientation is code A.
7 positions.
7 mm.
Free hanging (in-line) mount.
12 V, 24 V, 42 V, 48 V.
IP67/IP69K - Dust tight, water resistant, waterproof.
-40°C to 120°C.
1.5 mm crimp contacts.
