| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
408 pcs
|
408 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Spacing (Pitch) | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Processing Temperature (Max) | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Withstanding Voltage |

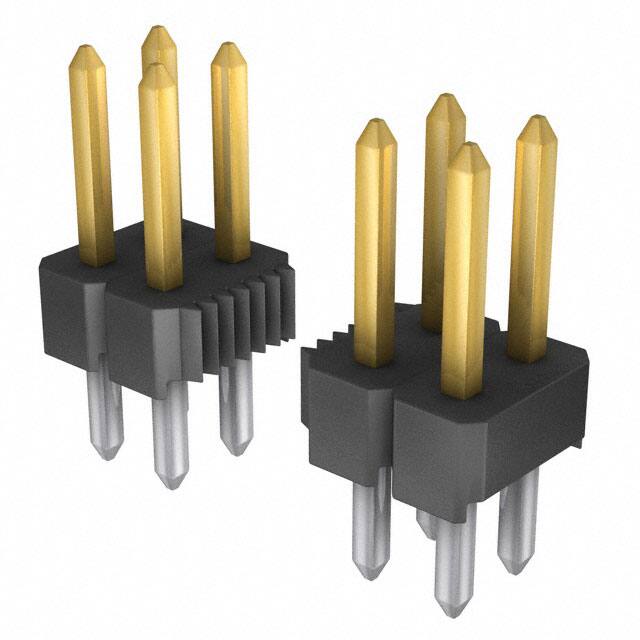

The 3M 961240-6404-AR is a 40 position, dual row, unshrouded pin header from the 961 series. It features a 2.54mm pitch and a through hole mounting style with straight solder tail terminations. The header is designed for board-to-board applications and uses a push-pull fastening mechanism.
The connector is rated for 2A current and can withstand 1000 VDC. It has an insulation resistance greater than 5 x 10^9 Ohms at 100 VDC. The housing is made of black high temperature thermoplastic with a UL94 V-0 flammability rating. Contacts are made of copper alloy with a tin finish.
The operating temperature range is -25°C to 105°C, with a maximum processing temperature of 260°C per J-STD-020C. The moisture sensitivity level is 1 (unlimited). The header is RoHS compliant and REACH unaffected.
It has 40 positions arranged in 2 rows.
The pitch is 2.54mm (0.100 inches).
The current rating is 2A.
It is a through hole mounting connector.
The operating temperature range is -25°C to 105°C.
Yes, it is RoHS3 compliant per the datasheet.
The insulation material is black thermoplastic with a UL94 V-0 flammability rating.
