| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

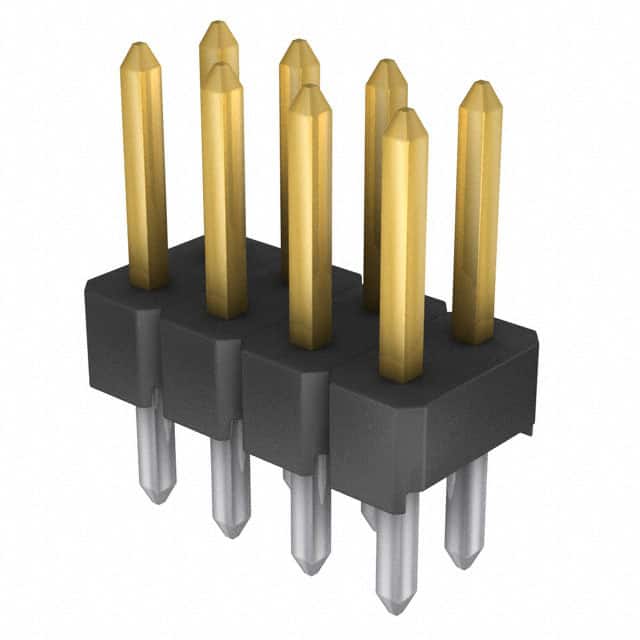

The 961208-6404-AR is an 8-position unshrouded header from 3M Electronic Solutions designed for board-to-board applications. It features a 2.54mm pitch and 2.54mm row spacing with two rows of male pins, all positions loaded. The through-hole mounting with solder termination ensures reliable mechanical and electrical connections.
Constructed with a black thermoplastic insulator rated UL94 V-0, this header offers robust insulation and flammability protection. The contacts are made of copper alloy with a tin finish (flash thickness), providing good conductivity and solderability. The overall contact length is 11.30mm with a contact length of 5.50mm and an insulation height of 2.50mm.
This header is rated for 2A current and operates over a temperature range of -25°C to 105°C, making it suitable for a variety of industrial and commercial electronic assemblies. The push-pull fastening type and square contact shape are typical for standard pin header applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.05 | $1.05 |
| 10+ | $0.89 | $0.89 |
| 100+ | $0.76 | $0.76 |
| 500+ | $0.67 | $0.67 |
| 1,000+ | $0.64 | $0.64 |
| 5,000+ | $0.57 | $0.57 |
| 10,000+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 8 positions, all loaded, in 2 rows.
The current rating is 2A.
Through hole with solder termination.
-25°C to 105°C.
Copper alloy contacts with tin finish (flash).
No, it is unshrouded.
