| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
93 pcs
|
93 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Pin Length | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Processing Temperature (Max) | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Withstanding Voltage |

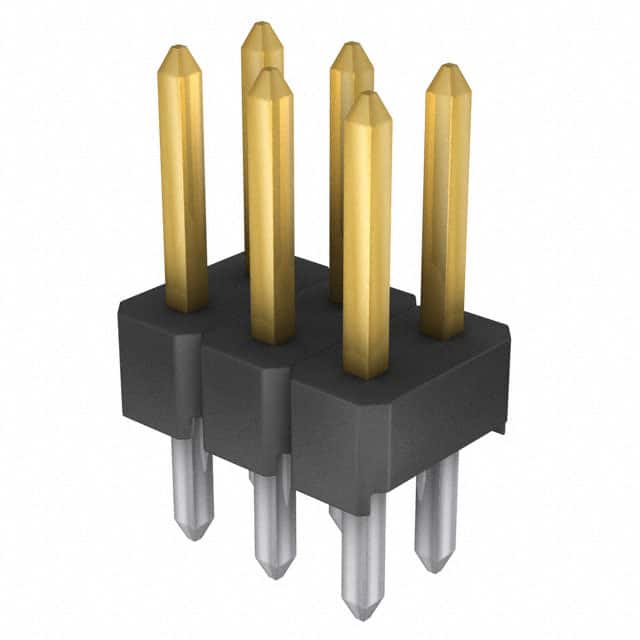

The 3M 961206-6404-AR is a 6-position, 2-row pin strip header from the 961 Series. It features male square pins with a 2.54mm pitch and a mating pin length of 5.5mm. The connector is unshrouded with a push-pull fastening type and is designed for board-to-board applications.
Electrical ratings include a current rating of 2A, insulation resistance greater than 5 GΩ at 100 VDC, and a withstanding voltage of 1000 VDC. The operating temperature range is -25°C to 105°C, with a maximum processing temperature of 260°C per J-STD-020C.
The header uses a black high-temperature thermoplastic insulator with UL94 V-0 flammability rating. Contacts are copper alloy with tin plating (flash on mating area, matte tin on solder tails). It is RoHS compliant and has MSL 1 (unlimited) moisture sensitivity.
6 positions in 2 rows.
2.54mm (0.100").
2A.
Through hole with solder tail termination.
-25°C to 105°C.
Yes, RoHS3 compliant per datasheet.
