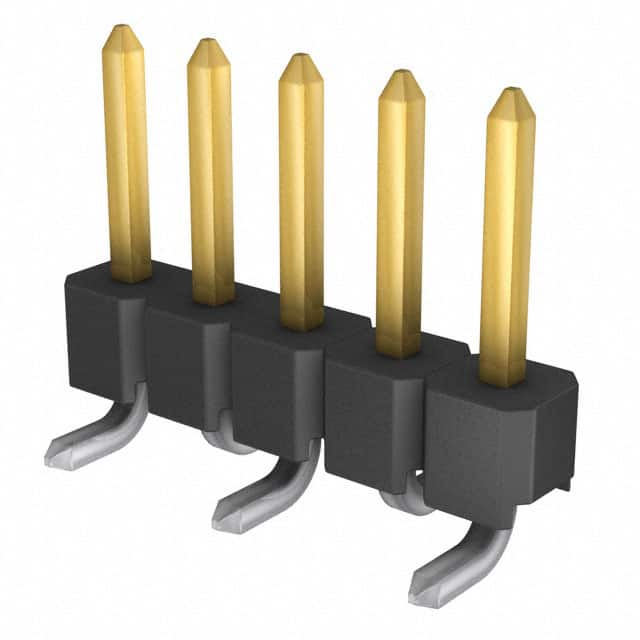

The 3M 961105-6300-AR-PR is a surface mount pin strip header from the 961 Series, designed for reliable board-to-board interconnections. This unshrouded, single-row header features 5 positions with a standard 2.54mm pitch, accommodating a wide range of PCB layouts. The male pin contacts are made of copper alloy with a tin finish on the wiping area and matte tin on solder tails, ensuring good solderability and corrosion resistance.
Rated at 2A per contact, the header provides sufficient current capability for signal and moderate power applications. It withstands 1000 VDC and maintains insulation resistance greater than 5x10^8 ohms at 100 VDC. Operating over -25°C to 105°C, it suits industrial and commercial environments. The high-temperature thermoplastic insulation meets UL94 V-0 flammability rating, and the component is MSL Level 1 with a maximum processing temperature of 260°C per J-STD-020C, making it compatible with lead-free reflow soldering.
Designed for surface mount assembly, the header employs solder termination and includes a pick-and-place feature for automated placement. It is supplied in tape and reel packaging on 24mm wide tape, facilitating high-volume production. The push-pull fastening type allows easy mating and unmating.
It has 5 positions in a single row.
The pitch is 2.54mm (0.100 inches).
It is rated at 2A per contact.
The withstanding voltage is 1000 VDC.
It is designed for Surface Mount (SMD) assembly.
The operating temperature range is -25°C to 105°C.
Yes, it is RoHS compliant per 3M's RIA.
