| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Processing Temperature (Max) | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Withstanding Voltage |

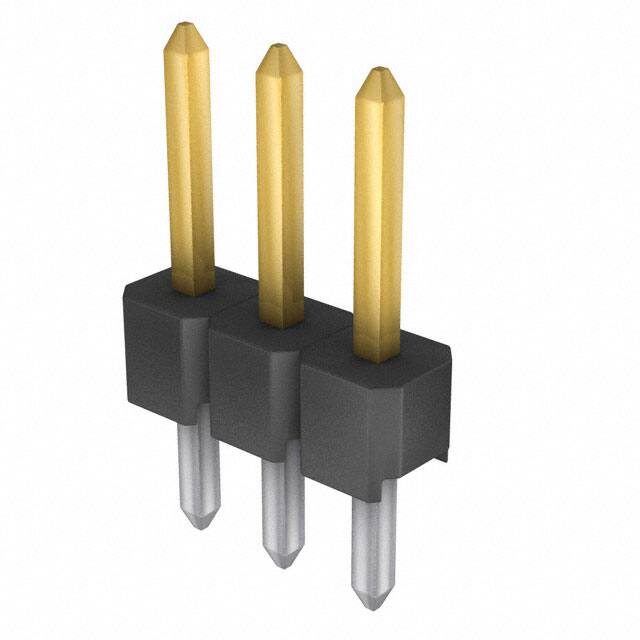

The 3M 961103-6404-AR is a 3-position, single-row unshrouded pin header from the 961 series. It features a 2.54mm pitch and through-hole mounting with solder termination. The male pins are made of copper alloy with a tin flash finish, and the square contact shape ensures reliable mating. The black thermoplastic insulator is rated UL94 V-0 for flammability.
Electrical ratings include a current rating of 2A, insulation resistance of 5 GΩ at 100 VDC, and withstanding voltage of 1000 VDC. The operating temperature range is -25°C to 105°C, and the component is MSL 1 (unlimited floor life) per J-STD-020C. The mating pin length is 5.5mm with an overall contact length of 11.3mm.
This header is designed for board-to-board applications and mates with 3M boardmount and wiremount products. It is RoHS and REACH compliant, and compatible with lead-free soldering processes up to 260°C peak.
3 positions.
2.54mm (0.100").
2A.
Through hole.
-25°C to 105°C.
Thermoplastic, UL94 V-0.
Tin (flash).
