| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Body Height Option | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Plating Solder Tail Area | |
| Plating Underplating | |
| Plating Wiping Area | |
| Processing Temperature | |
| SVHC Present | |
| Solder Tail Length | |
| Style | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage |

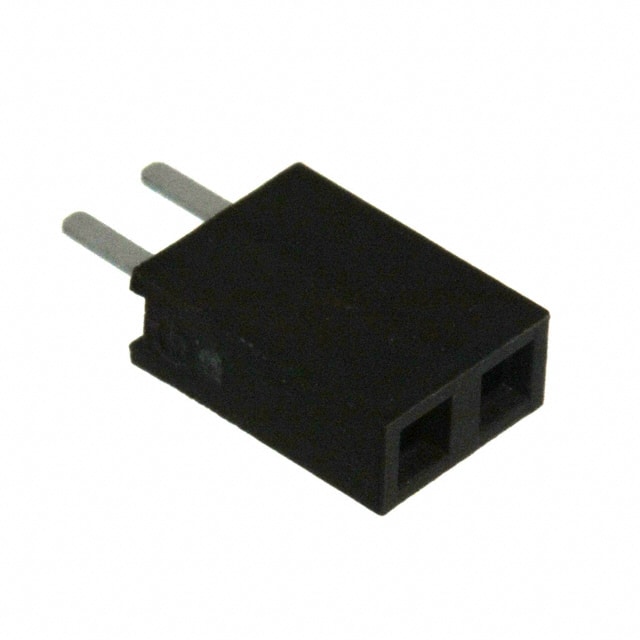

The 3M 960102-6202-AR is a 2-position, single-row board-to-board receptacle (female socket) from the 960 series. Designed for through-hole mounting with solder tail termination, this connector features a 2.54mm pitch and a black high-temperature thermoplastic insulator rated UL94 V-0. The contacts are copper alloy with a flash gold wiping area and matte tin solder tails over a nickel underplating.
Electrically, the receptacle is rated for 2A current and 1000VDC withstanding voltage, with insulation resistance greater than 5 x 10^8 Ohm at 100 VDC. It operates over a temperature range of -25°C to +105°C and can withstand a maximum processing temperature of 260°C per J-STD-020C. The moisture sensitivity level is 1.
This connector is RoHS compliant and intended for board-to-board interconnection, mating with 3M pin-strip header products. The 7.1mm body height and 3.0mm solder tail length are suitable for various PCB stacking applications.
It has 2 positions, arranged in a single row.
The pitch is 2.54 mm.
The current rating is 2 A.
The voltage rating is 1000 VDC.
It uses through-hole mounting with solder termination.
