| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
508 pcs
|
508 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Features | |
| Illumination | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Operating Voltage | |
| Outline | |
| Switch Function | |
| Termination Style |

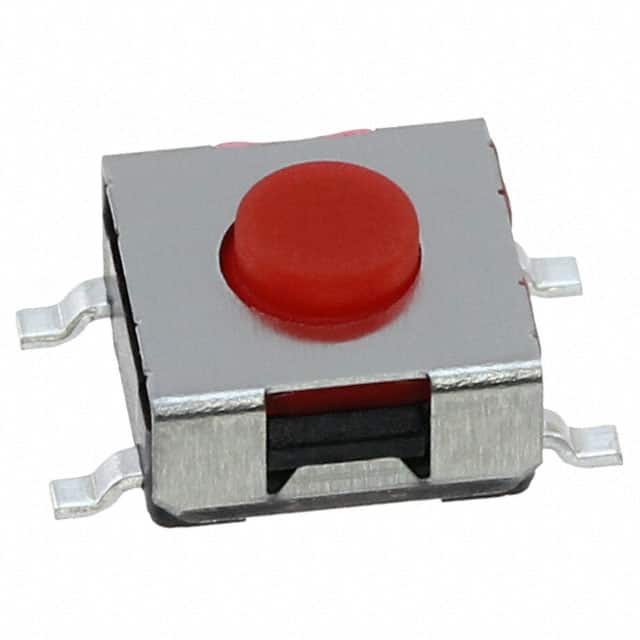

The Grayhill Inc. 95CW06D2GWT is a tactile switch designed for reliable operation in various applications. This SPST-NO (Single Pole Single Throw Normally Open) switch features a surface mount termination style with gull wing leads, ensuring secure placement on PCBs.
Key electrical specifications include a contact rating of 0.05A at 12VDC. The switch is designed for a 180gf operating force and has a vertical actuator height of 3.80mm. Its dimensions are 6.30mm x 6.20mm, with a size rank of B.
This tactile switch is built for durability, boasting a life rating of up to 500,000 cycles and a cycle rank of D. It is also washable, making it suitable for environments where cleaning is necessary. The operating temperature range is from -25°C to 70°C.
Compliance information indicates RoHS3 compliance and an MSL 1 rating. The switch is non-illuminated and features a standard actuator type.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the 95CW06D2GWT is 12 VDC.
The operating force of the 95CW06D2GWT is 180 gf.
The 95CW06D2GWT has a life rating of up to 500,000 cycles.
The dimensions of the 95CW06D2GWT are 6 x 6 mm.
Yes, the 95CW06D2GWT is washable.
The 95CW06D2GWT is RoHS3 Compliant.
