| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Diameter | |
| Actuator Length | |
| Actuator Type | |
| Adjustment Type | |
| Built in Switch | |
| Bushing Thread | |
| Lead Style | |
| Mounting Type | |
| Number of Gangs | |
| Number of Turns | |
| Power (Watts) | |
| Resistance (Ohms) | |
| Resistive Material | |
| Rotation | |
| Taper | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

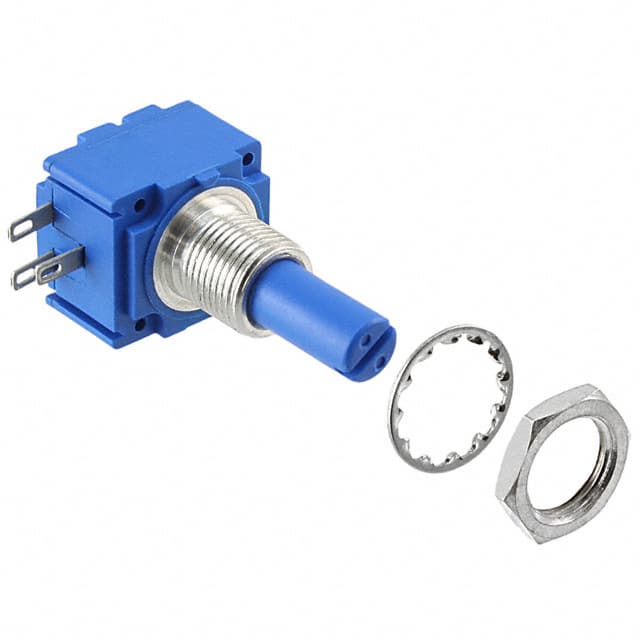

The Bourns 95A1D-B28-A13L is a high-quality rotary potentiometer designed for precise control in various electronic applications. It offers a resistance value of 5k Ohms with a linear taper and a power rating of 2W, ensuring reliable performance under demanding conditions.
This potentiometer features a panel mount design with a 3/8-32 bushing thread and a 0.250" (6.35mm) actuator diameter. The termination style is solder lug, facilitating easy integration into circuit designs. With a tolerance of ±10% and a rotation of 300°, it provides accurate adjustments.
The resistive material is cermet, known for its stability and durability. The temperature coefficient is ±150ppm/°C, indicating good performance across a range of temperatures. The component has a single gang and a slotted actuator type, with no built-in switch.
Environmental compliance includes RoHS3 compliance and an MSL of 1. The REACH status is unaffected. This part is suitable for applications requiring precise and stable resistance adjustments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 5k Ohms.
The power rating is 2W.
The tolerance is ±10%.
It has a linear taper.
The mounting type is Panel Mount.
The temperature coefficient is ±150ppm/°C.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
