| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination |

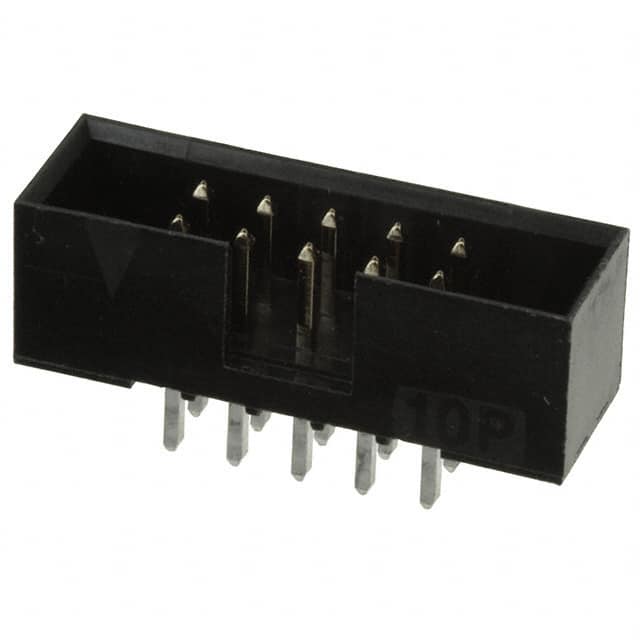

The 957210-6002-AR is a 10-position, 2-row shrouded header from 3M. It uses a 2.00mm pitch with male square pins and a through hole solder termination. The connector is fully shrouded on all four walls, providing robust protection for the pins. The push-pull fastening type allows easy mating and unmating. Key electrical specifications include a 1A current rating and an operating temperature range of -40°C to 105°C. The contact material is copper alloy with a tin flash finish. The insulation is black thermoplastic rated UL94 V-0 for flammability. The header includes a keying slot feature to ensure correct orientation during assembly. This board-to-board style connector is suitable for compact applications requiring secure, space-efficient connections.
10 positions
2.00mm (0.079")
1A
Through Hole
-40°C to 105°C
Yes, shrouded - 4 wall
Tin (Flash)
