| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Processing Temperature | |
| Row Spacing | |
| SVHC Present | |
| Standard Package Qty | |
| Style | |
| Termination | |
| Transition Resistance | |
| Voltage Rating | |
| Withstanding Voltage |

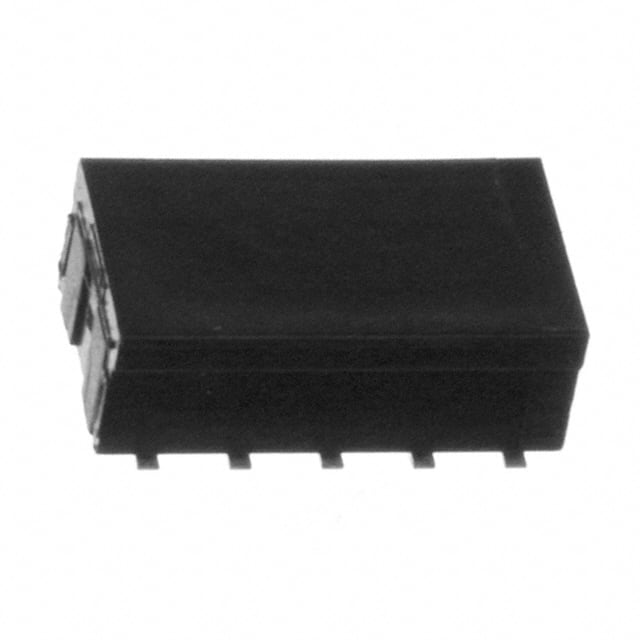

The 3M 956210-2000-AR-PR is a 10-position, dual row, 2.00mm pitch board-to-board receptacle from the 956 Series. It features a surface mount termination with a push-pull fastening type and is designed for bottom or top entry. The connector is housed in a black high temperature thermoplastic insulator with a UL94 V-0 flammability rating.
Electrical specifications include a current rating of 1A, voltage rating of 1000VDC, insulation resistance greater than 5x10^8 Ohm at 100VDC, and a transition resistance of ≤20 mOhm. The operating temperature range is -40°C to +105°C, with a maximum processing temperature of 260°C per J-STD-020C.
The contacts are copper alloy with a flash gold wiping area and matte tin solder tails. The part is packaged in tape and reel with pad, suitable for pick-and-place assembly. It is RoHS3 compliant and MSL Level 1.
The pitch is 2.00mm.
The current rating is 1A.
The voltage rating is 1000VDC.
It uses surface mount mounting.
The operating temperature range is -40°C to +105°C.
Yes, it is RoHS3 compliant.
