| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination |

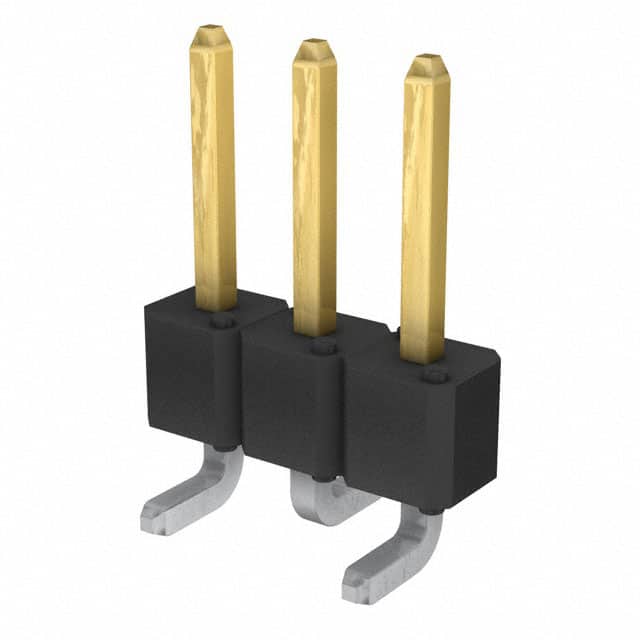

The Amphenol ICC 95293-801-03LF is a 3-position, single-row, unshrouded male pin header designed for board-to-board applications. It features a 2.54mm (0.100") pitch and square pins with a contact length of 5.84mm (0.230"). The connector is surface mount (SMD) with solder termination and a push-pull fastening type.
Constructed with a black thermoplastic insulator rated UL94 V-0, the header uses phosphor bronze contacts with a tin finish (15.0µin). It is rated for 3A current and operates over a temperature range of -65°C to 130°C. The breakaway design allows for easy customization of pin count.
It has 3 positions in a single row, all loaded.
The pitch is 2.54mm (0.100").
The current rating is 3A.
It is a surface mount (SMD) connector with solder termination.
The operating temperature range is -65°C to 130°C.
Contacts are phosphor bronze with a tin finish of 15.0µin (0.38µm).
RoHS3 compliance is indicated but unverified.
