| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Current Rating (Per Contact) | |
| Fastening Type | |
| Features | |
| Flammability Rating | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

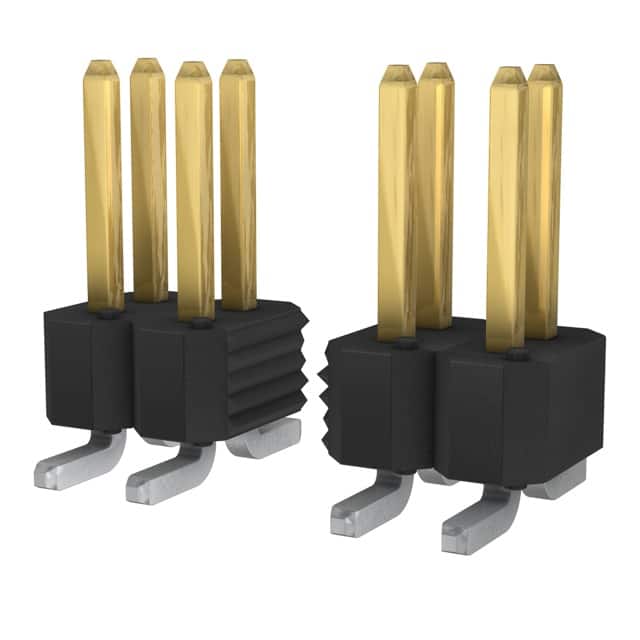

The 95278-101A10LF is a 10-position rectangular header connector manufactured by Amphenol ICC. It features two rows of male square pins with a 2.54mm pitch and 2.54mm row spacing, making it suitable for board-to-board interconnects. The connector is unshrouded with push-pull fastening and uses surface mount soldering for termination.
Mechanically, the header uses a black thermoplastic insulator with a UL94 V-0 flammability rating. The insulation height is 2.54mm and the mating contact length is 5.90mm. The contacts are made of phosphor bronze with a tin finish (30µin thickness). This design supports pick-and-place automated assembly.
Electrically, each contact is rated for 3A current. The operating temperature range spans -65°C to 125°C, allowing use in harsh environments. The component is RoHS3 compliant and MSL Level 1 (unlimited floor life). All 10 positions are loaded.
It has 10 positions arranged in 2 rows with all positions loaded.
The pitch (center-to-center spacing of contacts) is 2.54mm (0.100 inches) and row spacing is also 2.54mm.
Each contact is rated for 3A maximum.
It uses surface mount soldering termination.
The operating temperature range is -65°C to 125°C.
