95278-101A08LF 8-position unshrouded header with 2.54mm pitch and surface mount termination. Rated for 3A per contact with operating temperature range of -65°C to 125°C.
Mfr Part #:

95278-101A08LF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
8-position unshrouded header with 2.54mm pitch and surface mount termination. Rated for 3A per contact with operating temperature range of -65°C to 125°C.
✓ Total Stock: 600 pcs

95278-101A08LF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
600 pcs
On Request
600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

95278-101A08LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
View Similar Products (0)

95278-101A08LF Description

Short technical summary and product information.

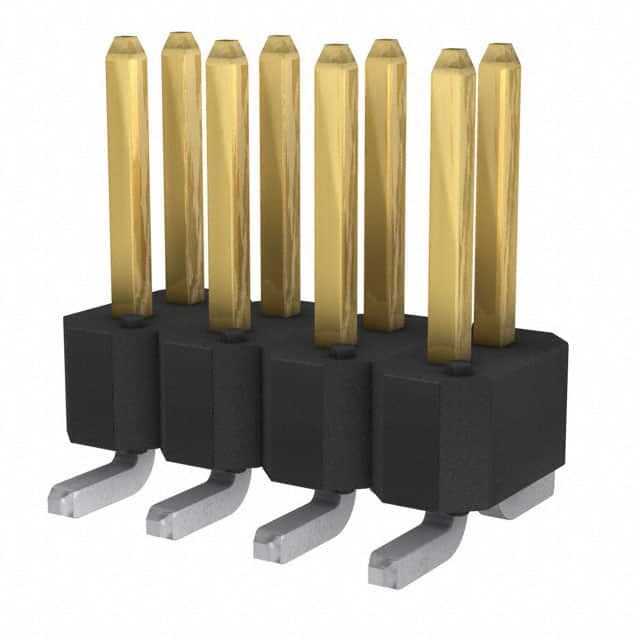

The 95278-101A08LF is an 8-position unshrouded header with male pins arranged in a 2x4 configuration. It features a 2.54mm pitch and surface mount solder termination for automated assembly. The contacts are made of phosphor bronze with a tin finish of 30µin (0.76µm). The header is designed for board-to-board applications and has a push-pull fastening mechanism. The insulation is made of black thermoplastic with a UL94 V-0 flammability rating. It includes a pick and place feature for efficient manufacturing.



Electrical rating: 3A per contact. Operating temperature range: -65°C to 125°C. This component is RoHS3 compliant (unverified) and has MSL 1 unlimited.

95278-101A08LF Quick Information

Product Type: Header, Breakaway
Series: 95278
Canonical Name: 8 Position Header, Breakaway, Male Pin, Surface Mount, 2.54mm Pitch
Subcategory: Unshrouded Header

95278-101A08LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

95278-101A08LF Features

  • 8-position unshrouded header with 2.54mm pitch.
  • Surface mount termination for automated assembly.
  • Tin plated phosphor bronze contacts.
  • Rated for 3A per contact.
  • Operating temperature range -65°C to 125°C.

95278-101A08LF Applications

  • Used for board-to-board interconnections in electronics.
  • Suitable for computer and peripheral equipment.
  • Applied in industrial control systems.
  • Fits designs requiring a 2.54mm pitch header.

95278-101A08LF FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

8 positions arranged in 2 rows.

What is the pitch of this connector?

2.54mm (0.100 inches).

What is the current rating per contact?

3A per contact.

What is the mounting type?

Surface mount with solder termination.

What is the operating temperature range?

-65°C to 125°C.

What material are the contacts and what finish do they have?

Phosphor bronze with tin finish (30µin / 0.76µm).

Is this header RoHS compliant?

RoHS3 compliant (unverified).
