| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
185 pcs
|
185 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

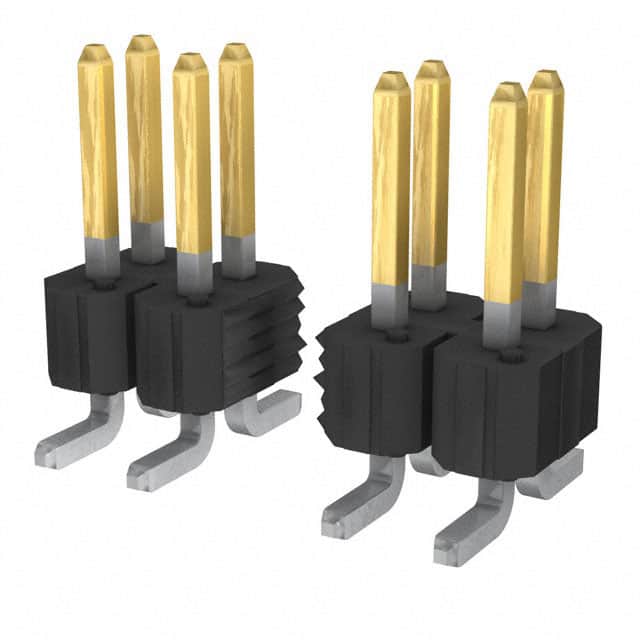

The Amphenol ICC 95157-110V is a 10-position, 2-row, unshrouded male pin header designed for surface mount board-to-board applications. It features a 2.54mm (0.100") pitch and row spacing, making it suitable for standard prototyping and production interconnects.
The connector is rated for 3A current and operates over a temperature range of -65°C to 130°C. Contacts are made of phosphor bronze with a 30.0µin (0.76µm) tin finish, providing reliable electrical performance. The black thermoplastic insulator is rated UL94 V-0 for flammability.
This header is designed for pick-and-place assembly, with a push-pull fastening type and a contact length of 5.84mm (0.230"). All 10 positions are loaded, and the termination is solder. The part is RoHS3 compliant and has an MSL of 1 (unlimited).
The 95157-110V has 10 positions in 2 rows, all loaded.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm (0.100").
The current rating is 3A.
The mounting type is surface mount (SMT) with solder termination.
The operating temperature range is -65°C to 130°C.
The contact finish is tin with a thickness of 30.0µin (0.76µm).
The part is listed as RoHS3 compliant, though this data is unverified.
