| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
482 pcs
|
482 pcs | On Request | 1 | On Request | On Request | NDC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

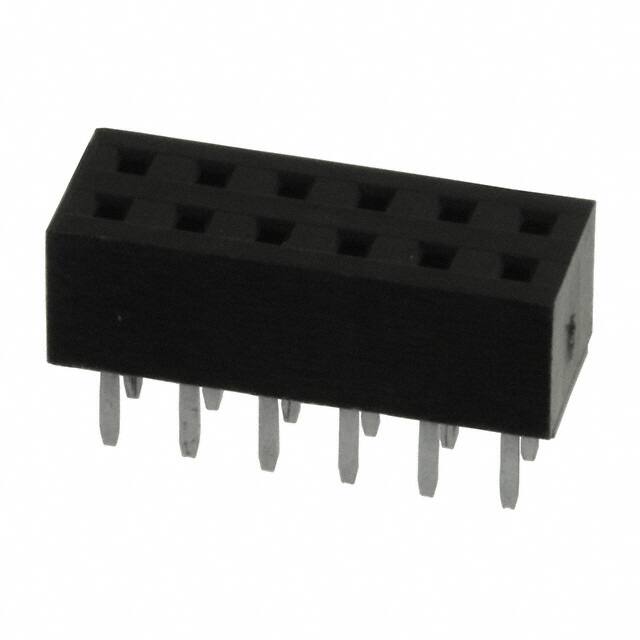

The 950412-6102-AR is a 12 position board to board receptacle connector from 3M Electronic Solutions. It features a 2.00mm pitch and 2.00mm row spacing, making it suitable for compact PCB stacking applications. The connector uses female socket contacts with a tin flash finish and is rated for 1A current and 1000V voltage.
This through hole connector uses a push-pull fastening mechanism and is housed in a black insulator with a UL94 V-0 flammability rating. It operates over a temperature range of -40°C to 105°C. The contact length is 2.69mm and the insulation height is 4.30mm.
The connector is designed for solder termination and all 12 positions are loaded in a 2 row configuration. It is RoHS3 compliant and has an MSL of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 686+ | $1.11 | $1.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 12 positions, all loaded, in a 2 row configuration.
The pitch is 2.00mm (0.079").
The current rating is 1A.
The voltage rating is 1000V.
The mounting type is through hole with solder termination.
The operating temperature range is -40°C to 105°C.
The contact finish is tin with a flash thickness.
