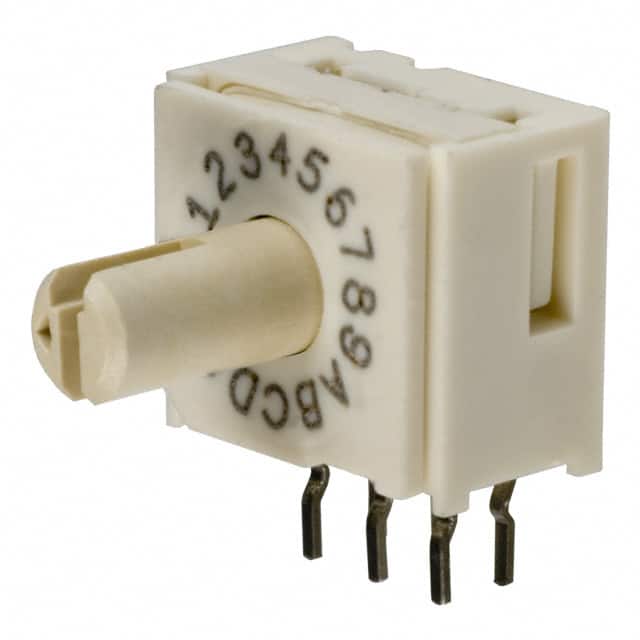

94HBB16RAT The Grayhill Inc. 94HBB16RAT is a rotary DIP switch with hexadecimal circuitry and 16 positions. It is designed for through-hole, right-angle mounting.
Mfr Part #:

94HBB16RAT

Available from 1 distributors
Mfr Name: Grayhill Inc.
Grayhill Inc.
The Grayhill Inc. 94HBB16RAT is a rotary DIP switch with hexadecimal circuitry and 16 positions. It is designed for through-hole, right-angle mounting.
✓ Total Stock: 5 pcs
$ Price Range: $0.75

94HBB16RAT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

94HBB16RAT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Features
Height Above Board
Mounting Type
Number of Positions
Operating Temperature
Pitch
Switch Type
Tape & Reel
Termination Style
Voltage Rating
Washable
View Similar Products (0)

94HBB16RAT Description

Short technical summary and product information.

The Grayhill Inc. 94HBB16RAT is a rotary DIP switch from the 94H series. This switch features hexadecimal circuitry and offers 16 positions for versatile configuration.



Designed for through-hole, right-angle mounting, it has a pitch of 2.54mm (0.100"). The switch is rated for 100mA at 50VDC and features gold-plated copper alloy contacts. Its operating temperature range is -40°C to 85°C.



Key features include a sealed construction and a raised actuator. The switch has a mechanical life rating of 10,000 cycles. It is also RoHS3 compliant and has an MSL of 1.

94HBB16RAT Quick Information

Product Type: Rotary DIP Switch
Series: 94H
Canonical Name: Grayhill Inc. 94H Series Rotary DIP Switch, Hexadecimal, 16 Positions, Through Hole, Right Angle
Subcategory: DIP Switches

94HBB16RAT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

94HBB16RAT Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

94HBB16RAT Features

  • Rotary DIP switch with hexadecimal circuitry.
  • 16 positions for versatile configuration options.
  • Through-hole, right-angle mounting with 2.54mm pitch.
  • Rated for 100mA at 50VDC with gold-plated contacts.
  • Sealed construction and operates from -40°C to 85°C.

94HBB16RAT Applications

  • Suitable for PCB mounting applications.
  • Used in electronic control systems.
  • Ideal for setting configurations.
  • Reliable for industrial environments.

94HBB16RAT FAQs

5 frequently asked questions generated from this part’s specifications.
What type of circuitry does the 94HBB16RAT switch use?

The 94HBB16RAT switch uses hexadecimal circuitry.

How many positions does the Grayhill 94HBB16RAT rotary DIP switch have?

The Grayhill 94HBB16RAT rotary DIP switch has 16 positions.

What is the current and voltage rating for the 94HBB16RAT switch?

The switch is rated for 100mA at 50VDC.

What is the operating temperature range for this rotary DIP switch?

The operating temperature range is -40°C to 85°C.

Is the Grayhill 94HBB16RAT RoHS compliant?

Yes, the 94HBB16RAT is RoHS3 Compliant.
