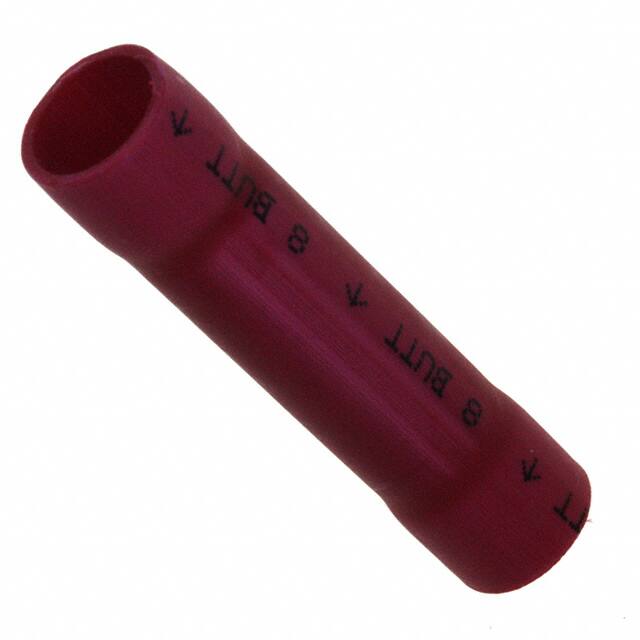

94793 3M 94793 is a vinyl insulated, brazed seam butt splice connector for 8 AWG wire, with crimp termination. Supplied in a bag of 25 pieces.
Mfr Part #:

94793

Available from 1 distributors
Mfr Name: 3M Electronic Solutions
3M Electronic Solutions
3M 94793 is a vinyl insulated, brazed seam butt splice connector for 8 AWG wire, with crimp termination. Supplied in a bag of 25 pieces.
✓ Total Stock: 225 pcs
$ Price Range: $0.71 - $1.23

94793 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
225 pcs
On Request
225 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

94793 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Features
Insulation
Insulation Material
Lead Style
Number of Wire Entries
SVHC Present
Terminal Style
Terminal Type
Termination
Termination Style
Thickness
Wire Gauge
View Similar Products (0)

94793 Description

Short technical summary and product information.

The 3M 94793 is a fully insulated butt splice connector designed for splicing 8 AWG wire. It features a vinyl insulation sleeve and a brazed seam barrel for reliable mechanical and electrical connections. The connector is terminated using a standard crimp tool, ensuring a secure and consistent joint.



Key specifications include an overall length of 1.50 inches (38.1 mm), a barrel length of 0.38 inches (9.652 mm), and a barrel inside diameter of 0.175 inches (4.445 mm). The maximum insulation diameter accommodated is 0.300 inches (7.62 mm), and the connector thickness is 0.050 inches (1.27 mm).



This butt splice is suitable for a wide range of wire splicing applications where a durable, insulated connection is required. The vinyl insulation provides basic protection against abrasion and environmental exposure. The connector is RoHS compliant (2011/65/EU) and is packaged in a bag of 25 pieces.

94793 Quick Information

Product Type: Butt Splice Connector
Series: 94793
Canonical Name: 3M Vinyl Insulated Brazed Seam Butt Connector, 8 AWG, Bag of 25
Subcategory: Wire Splice Connectors

94793 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

94793 Estimated Pricing

Qty Low High
1+ $1.23 $1.23
10+ $1.04 $1.04
30+ $0.96 $0.96
50+ $0.93 $0.93
100+ $0.89 $0.89
250+ $0.83 $0.83
500+ $0.79 $0.79
1,000+ $0.75 $0.75
2,500+ $0.71 $0.71

Estimated market price range - modelled values for guidance only, not live distributor offers.

94793 Features

  • Vinyl insulated fully insulated butt splice.
  • Brazed seam barrel for reliable connections.
  • Crimp termination for secure wire joints.
  • Rated for 8 AWG wire gauge.
  • Bag of 25 pieces per package.

94793 Applications

  • Splicing 8 AWG electrical wires.
  • General purpose wire repair and joining.
  • Automotive and industrial wiring harnesses.
  • Panel and control cabinet wiring.

94793 FAQs

6 frequently asked questions generated from this part’s specifications.
What wire gauge is this butt splice connector rated for?

The 3M 94793 butt splice connector is rated for 8 AWG wire.

What is the insulation material of this connector?

The insulation material is vinyl, and the connector is fully insulated.

What is the termination style?

The termination style is crimp.

How many pieces are in a bag?

Each bag contains 25 pieces.

Is this product RoHS compliant?

Yes, the 3M 94793 is RoHS compliant (2011/65/EU).

What is the barrel style of this connector?

The barrel style is brazed.
