| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| ESR (Equivalent Series Resistance) | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Size / Dimension | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Voltage Rating DC |

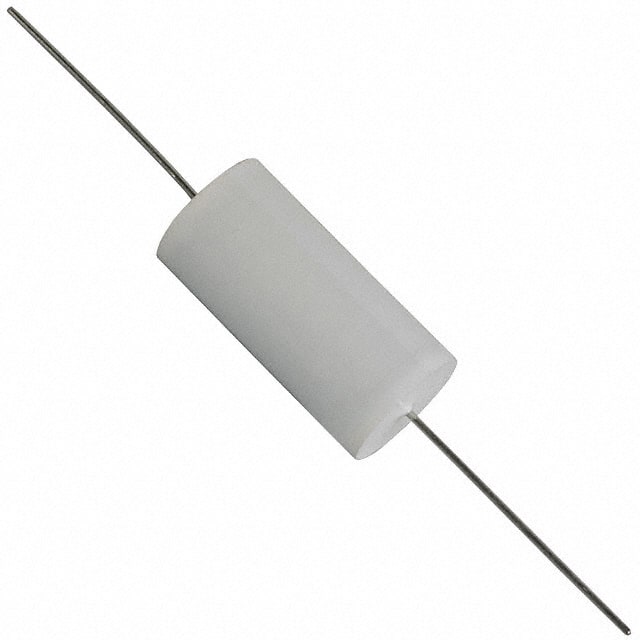

The 940C20P47K-F is a Type 940 polypropylene film capacitor from Cornell Dubilier Electronics (CDE). It uses metallized polypropylene film electrodes that provide self-healing properties and high peak current capability. The capacitor is rated at 0.47 µF with ±10% tolerance and a DC voltage rating of 2000V. It offers low equivalent series resistance (ESR) of 6 mΩ, making it suitable for high frequency and high pulse applications.
Designed for snubber and high dV/dt circuits, this capacitor can handle high pulse currents and features low inductance due to its axial construction. The operating temperature range is -55°C to 105°C, with full voltage rating up to 85°C and linear derating to 50% at 105°C.
The component is housed in an axial leaded through-hole package with dimensions 32.00mm x 46.00mm (1.260" Dia x 1.811" L). Termination is via PC pins. The dielectric material is polypropylene and the case uses UL510 polyester tape wrap with UL94V-0 epoxy fill.
Compliance information includes RoHS3 compliant (unverified), MSL 1 – Unlimited, and REACH Unaffected. Note that these compliance claims are unverified and should be confirmed with the manufacturer before critical use.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.14 | $15.14 |
| 25+ | $10.97 | $10.97 |
| 50+ | $10.47 | $10.47 |
| 100+ | $10.06 | $10.06 |
| 500+ | $9.36 | $9.36 |
| 1,000+ | $9.14 | $9.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 0.47 µF.
The DC voltage rating is 2000V (2kV).
The dielectric material is polypropylene (PP), metallized.
The tolerance is ±10%.
The component comes in an axial leaded through-hole package.
The operating temperature range is -55°C to 105°C.
The ESR is 6 mΩ.
