| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
| On Request | On Request | 10 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Type | |
| Color | |
| Conductor Range | |
| Connector Type | |
| Features | |
| Keying | |
| Lead Style | |
| Length | |
| Number of Positions | |
| Plug Type | |
| Shielding | |
| Termination |

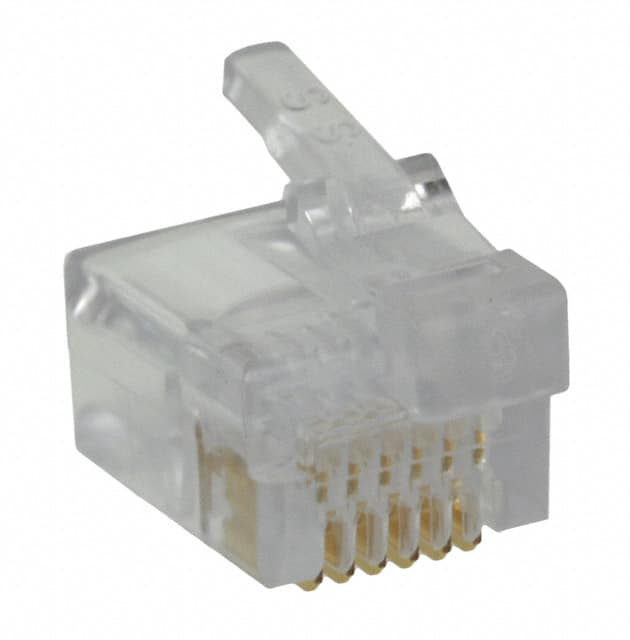

The 940-SP-3066R-OST is a standard modular plug from Stewart Connector, designed for round cable with solid or stranded wires. It features 6 positions and 6 contacts (6P6C), supporting RJ11, RJ12, RJ14, and RJ25 configurations. The plug is unshielded and uses IDC termination for quick wire connections. It is OST-keyed and features an offset latch for secure mating. The housing is translucent clear, allowing visual inspection of wire termination. The conductor range is 0.032 to 0.038 inches (0.81-0.97mm). The plug length is 13.34mm (0.525 inches). This modular plug is suitable for telecommunication and data networking applications where a compact, cost-effective connector is needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.79 | $0.79 |
| 10+ | $0.67 | $0.67 |
| 25+ | $0.63 | $0.63 |
| 50+ | $0.60 | $0.60 |
| 100+ | $0.57 | $0.57 |
| 250+ | $0.53 | $0.53 |
| 500+ | $0.51 | $0.51 |
| 1,000+ | $0.48 | $0.48 |
| 2,500+ | $0.45 | $0.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions 6 contacts (6P6C), supporting RJ11, RJ12, RJ14, RJ25.
IDC (Insulation Displacement Connection).
No, it is unshielded.
Yes, it is OST-keyed for alignment.
0.032 to 0.038 inches (0.81-0.97mm).
Translucent clear.
Yes, it has an offset latch.
