| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:09:10 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Lubrication | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Socket Type | |
| Standard Package Quantity | |
| Standard Package Quantity (Reel) | |
| Standard Package Quantity (Tube) | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Type |

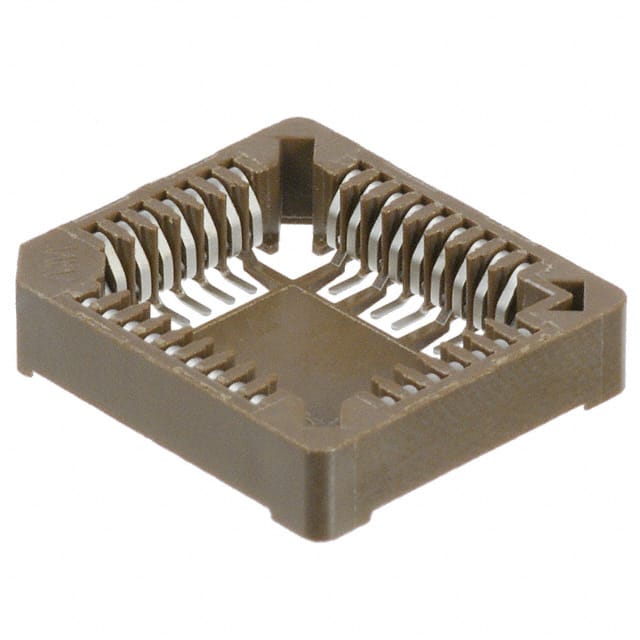

This Mill-Max Series 940 PLCC socket accepts JEDEC PLCC packages (MO-047 and MO-052). It features 32 positions arranged in a 2×7 and 2×9 grid with a 1.27mm pitch. The surface mount design includes standoffs that provide clearance for heat dissipation and cleaning after soldering. Contacts are made from beryllium copper with tin-lead plating (150µin per datasheet) and the housing is glass reinforced PPS. The closed-frame design protects the contacts and the operating temperature range is -55°C to 125°C.
The socket is available in tube packaging (27 pieces per tube) and also supports tape and reel packaging (400 pieces per reel). The low profile design is ideal for high-density PC board stacking. This component is designed for use with JEDEC-standard PLCC integrated circuits.
Typical applications include programming, testing, and production socketing of PLCC devices in industrial and commercial electronics. The beryllium copper contacts provide reliable mechanical and electrical connections over many insertion cycles.
| Qty | Low | High |
|---|---|---|
| 456+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This socket has 32 positions arranged in a 2×7 and 2×9 grid.
The pitch is 1.27mm (0.050 inches).
Surface mount (SMT).
-55°C to +125°C.
Beryllium copper contacts with tin-lead plating.
Standard tube packaging (27 pieces per tube) and tape and reel (400 pieces per reel).
Yes, it accepts JEDEC PLCC packages MO-047 and MO-052.
