| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | 0553 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Package / Case | |
| Pitch | |
| Termination | |
| Termination Style | |
| Type |

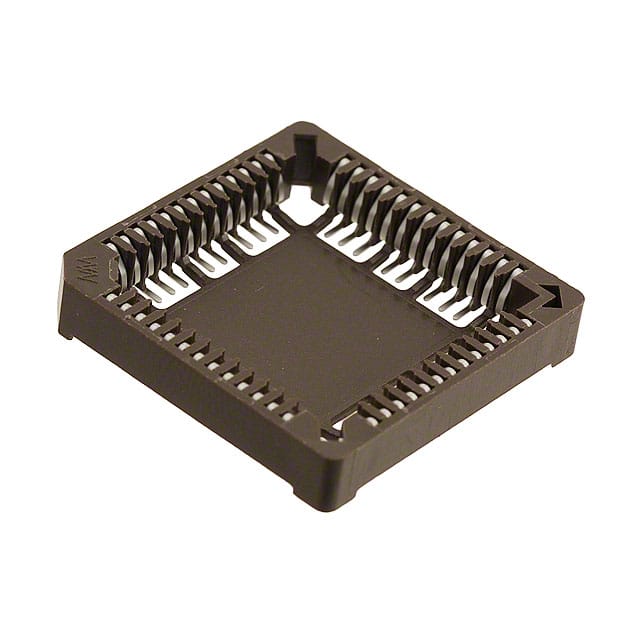

This PLCC socket from Mill-Max Manufacturing features 52 positions arranged in a 4x13 grid with a 1.27mm (0.050") pitch. It is designed for surface mount applications and uses solder termination. The contacts are made of beryllium copper with a tin finish of 150µin (3.81µm) thickness. The housing is constructed from Polycyclohexylenedimethylene Terephthalate (PCT) and Polyester, providing a closed frame design that ensures secure IC retention. The socket operates over a temperature range of -55°C to 125°C, making it suitable for a wide variety of industrial and commercial environments. The part is RoHS3 compliant and has an MSL of 1 (unlimited).
52 positions (4x13 grid).
1.27mm (0.050").
Surface mount with solder termination.
Tin, 150µin thickness.
Beryllium copper.
-55°C to 125°C.
Polycyclohexylenedimethylene Terephthalate (PCT) and Polyester.
