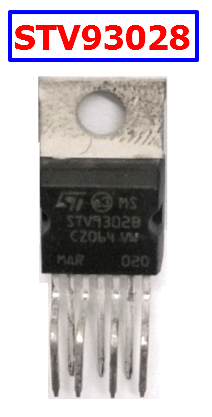

The STV9302B, also known as STV93028, is a vertical deflection booster from PICO ELECTRONICS. It is designed for 50-60 Hz TV applications.
This device can be supplied with up to 35 V and delivers an output current of up to 2 App to drive the vertical deflection yoke. The internal flyback generator is capable of producing flyback voltages up to 70 V.
The STV93028 is housed in a 7-pin Heptawatt package. It features a power amplifier, flyback generator, and thermal protection. The device supports DC-coupled applications where the display's vertical position can be adjusted via input bias, requiring two supply sources (VS and -VEE).
Key specifications include a maximum output current of 2 App and a maximum supply voltage of 35 V. The internal flyback generator can reach up to 70 V.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The STV93028 provides up to 2 App output current.
The STV93028 can be supplied with up to 35 V.
The internal flyback generator delivers flyback voltages up to 70 V.
The STV93028 is available in a 7-pin Heptawatt package.
