| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Diameter | |
| Actuator Length | |
| Actuator Type | |
| Adjustment Type | |
| Built in Switch | |
| Bushing Thread | |
| Dielectric Strength (Minimum @ 70,000 Feet) | |
| Dielectric Strength (Minimum @ Sea Level) | |
| Effective Electrical Angle | |
| Features | |
| Independent Linearity | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Gangs | |
| Number of Turns | |
| Output Smoothness | |
| Power (Watts) | |
| Power Rating (Nominal @ +70 °C Multiple Section Assembly) | |
| Power Rating (Nominal @ +70 °C Single Section Assembly) | |
| Power Rating (Nominal @ 125 °C) | |
| Resistance (Ohms) | |
| Resistive Material | |
| Rotation | |
| Taper | |
| Temperature Coefficient | |
| Termination Style | |
| Theoretical Resolution | |
| Tolerance |

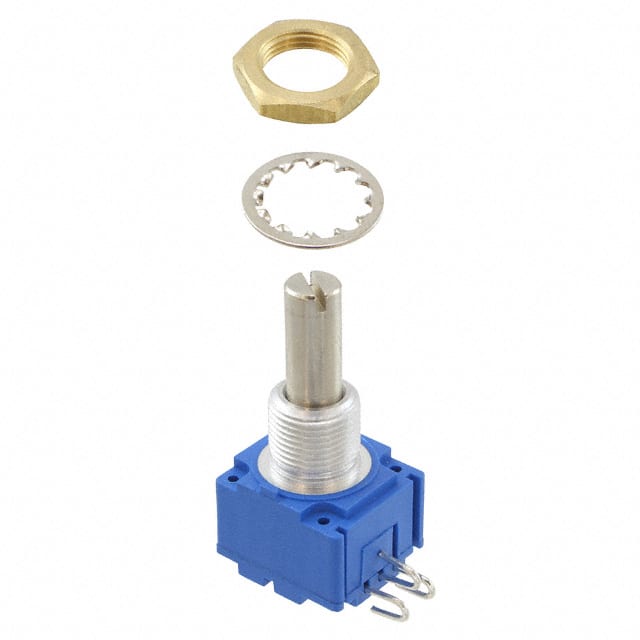

This Bourns 92R1A-J22-L15L is a rotary potentiometer from the Long Life Series, designed for applications requiring durability and precision. It features a standard resistance of 10k Ohms with a tolerance of ±10% and a linear taper.
The potentiometer has a power rating of 1W at +70°C for single section assemblies and 0.5W/section for multiple section assemblies. It offers an effective electrical angle of 240° ± 5° and a theoretical resolution described as essentially infinite. The resistive element is made of conductive plastic, contributing to its extended rotational life.
Designed for panel mounting, this unit has a bushing thread of M10 and an actuator length of 0.866" (22.00mm) with a diameter of 0.236" (6.00mm). The termination style is solder hook. The series is noted for virtually infinite electrical circuit isolation and availability in various pin-out configurations.
Key electrical characteristics include a ±2% independent linearity and a temperature coefficient of ±1000ppm/°C. Dielectric withstanding voltage is rated at 1,500 VAC minimum at sea level and 500 VAC minimum at 70,000 feet. Insulation resistance is a minimum of 1,000 megohms at 500 VDC.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 92R1A-J22-L15L potentiometer has a resistance value of 10k Ohms.
The power rating for the 92R1A-J22-L15L potentiometer is 1 watt at +70°C for single section assembly.
The tolerance for the 92R1A-J22-L15L potentiometer is ±10%.
The 92R1A-J22-L15L uses a conductive plastic resistive element.
The 92R1A-J22-L15L potentiometer is designed for panel mounting.
