929975-1 TE Connectivity 929975-1 socket contact for 13-17 AWG wire, crimp termination, tin plated, rated 34 A typical.
Mfr Part #:

929975-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 929975-1 socket contact for 13-17 AWG wire, crimp termination, tin plated, rated 34 A typical.
✓ Total Stock: 18,000 pcs
$ Price Range: $0.17 - $0.35

929975-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
18,000 pcs
On Request
18000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

929975-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Finish Thickness
Contact Material
Contact Size
Contact Termination
Contact Type
Features
Halogen Free
Industrial Grade
Lead Style
Operating Temperature Range
Termination Finish
Termination Method
Type
Wire Gauge or Range
View Similar Products (0)

929975-1 Description

Short technical summary and product information.

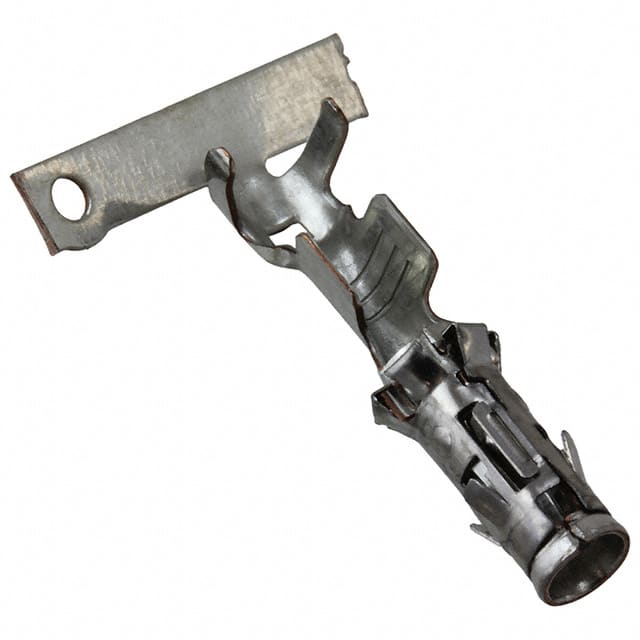

The TE Connectivity 929975-1 is a stamped and formed socket contact designed for the Round Connector System. It accommodates 13-17 AWG wire (1-2.5 mm²) with a wire insulation diameter of 2.2-3 mm. The contact uses an F-crimp termination method and is tin plated on both the interface and termination area.



This sealable contact features a locking lance primary locking mechanism and supports a single wire seal (SWS) for environmental protection. It is rated for a typical current of 34 A with a power transmission range of 25-40 A. The mating pin diameter is 2.5 mm.



The contact is uninsulated and operates over a temperature range of -40 to 130 °C. It is supplied on a reel in quantities of 3000 pieces.

929975-1 Quick Information

Product Type: Circular Connector Contact
Canonical Name: TE Connectivity Round Connector System Socket Contact, 13-17 AWG, Crimp Termination, Tin Plating
Subcategory: Automotive Terminal

929975-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Compliant

929975-1 Estimated Pricing

Qty Low High
1+ $0.35 $0.35
10+ $0.30 $0.30
25+ $0.28 $0.28
50+ $0.27 $0.27
100+ $0.25 $0.25
250+ $0.24 $0.24
500+ $0.23 $0.23
1,000+ $0.22 $0.22
3,000+ $0.20 $0.20
6,000+ $0.19 $0.19
9,000+ $0.18 $0.18
15,000+ $0.18 $0.18
21,000+ $0.17 $0.17
30,000+ $0.17 $0.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

929975-1 Features

  • Stamped and formed socket contact.
  • Rated for 34 A typical current.
  • Sealable with single wire seal.
  • F-crimp termination for 13-17 AWG.
  • Tin plated interface and termination.

929975-1 Applications

  • Used in automotive Round Connector System.
  • Suitable for power transmission up to 40 A.
  • Ideal for sealed connector applications.
  • Compatible with 2.5 mm mating pins.

929975-1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the 929975-1 contact?

The typical current rating is 34 A, with a power transmission range of 25-40 A.

What wire gauge does this contact accept?

It accepts 13-17 AWG wire (1-2.5 mm²).

Is this contact sealable?

Yes, it is sealable and supports a single wire seal (SWS).

What is the operating temperature range?

The operating temperature range is -40 to 130 °C.

What termination method does this contact use?

It uses an F-crimp termination method.
