| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Process Rating | |
| Style | |
| Temperature Rating | |
| Termination | |
| Termination Style | |
| Underplating | |
| Voltage Rating | |
| Withstanding Voltage |

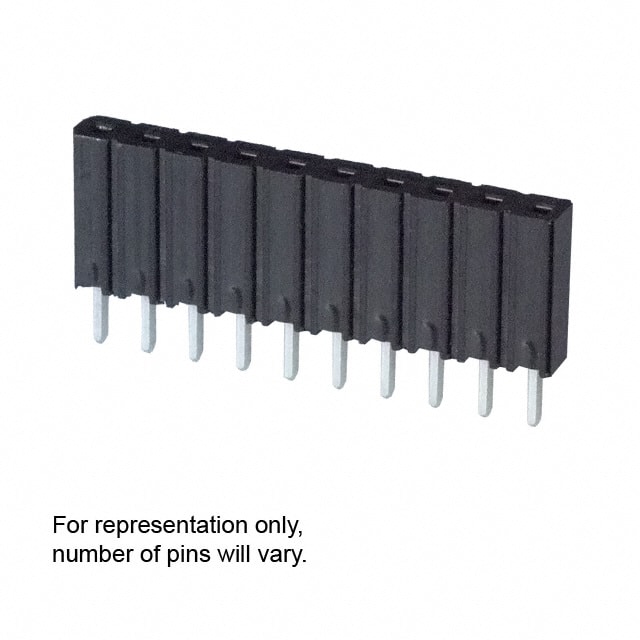

The 3M 929974-01-16-RK is a 16-position boardmount socket from the 929 Series. It features a single row of forked contacts with a 2.54mm (0.100") pitch. The connector is designed for through-hole mounting with solder termination, making it suitable for board-to-board applications. The insulator is made of glass-filled polyester (PCT) with a UL94 V-0 flammability rating and black color. Contacts are copper alloy with a tin finish (100 μin nickel underplating). Electrical ratings include 2A current and 1500V voltage. Operating temperature range is -40°C to +105°C. The socket has a push-pull fastening type and an insulation height of 8.25mm. It is RoHS3 compliant (unverified) and has an MSL of 1. This connector is commonly used in industrial and consumer electronics for reliable board-to-board connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.72 | $2.72 |
| 10+ | $2.31 | $2.31 |
| 360+ | $1.80 | $1.80 |
| 720+ | $1.71 | $1.71 |
| 1,080+ | $1.66 | $1.66 |
| 5,040+ | $1.49 | $1.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions.
2.54mm (0.100").
2A maximum.
1500V.
Through hole.
-40°C to +105°C.
Tin with 100 μin nickel underplating.
