| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Process Rating | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Withstanding Voltage |

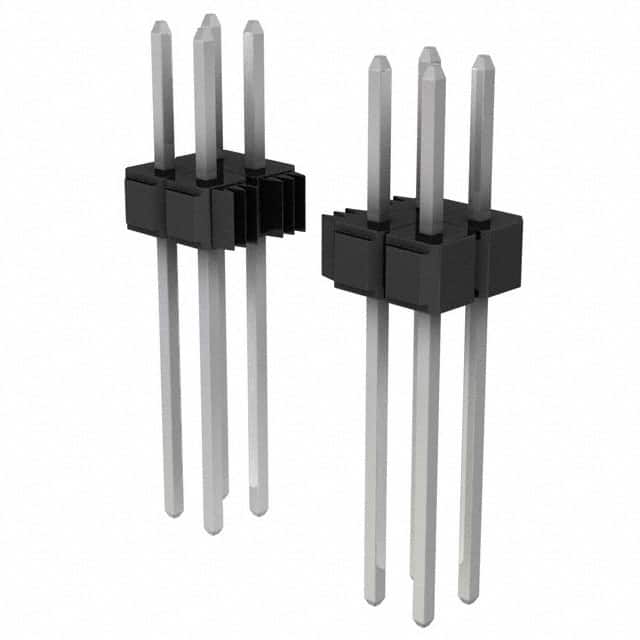

The 929836-04-08-RK is a 16-position, dual-row unshrouded header from 3M's 929 Series. It features a 2.54mm pitch and row spacing, with through hole mounting and solder termination. The square male pins are made of copper alloy with a tin contact finish (200µin). The insulator is black polycyclohexylenedimethylene terephthalate (PCT) rated UL94 V-0. This header is rated for 2.5A current, with a withstanding voltage of 1500 VRMS at sea level and insulation resistance greater than 5 × 10^9 Ω at 500 VDC. The operating temperature range is -40°C to +105°C. The overall contact length is 21.46mm with a mating length of 5.97mm. Designed for board-to-board applications, it uses a push-pull fastening type.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.37 | $1.37 |
| 10+ | $1.16 | $1.16 |
| 100+ | $1.04 | $1.04 |
| 500+ | $0.85 | $0.85 |
| 1,000+ | $0.76 | $0.76 |
| 5,000+ | $0.66 | $0.66 |
| 10,000+ | $0.63 | $0.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 16 positions arranged in 2 rows.
The current rating is 2.5A.
Through hole mounting with solder termination.
-40°C to +105°C.
No, it is unshrouded.
The insulator is polycyclohexylenedimethylene terephthalate (PCT) with UL94 V-0 rating.
