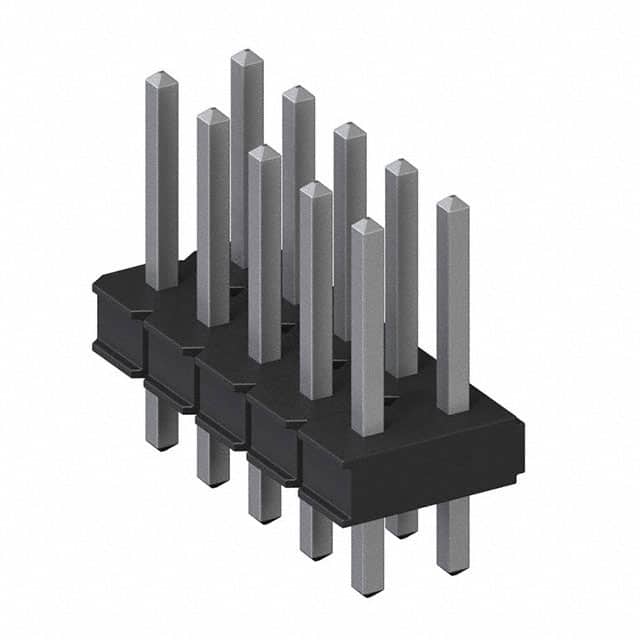

The 929836-01-05 is a 10-position, dual-row male pin header from the 3M 929 series. It features a 2.54mm (0.100") pitch and through-hole mounting with solder wrap tails. The header is unshrouded with a push-pull fastening type, designed for board-to-board connections.
Electrical specifications include a current rating of 2.5A, insulation resistance greater than 5×10^9 Ω at 500 VDC, and a withstanding voltage of 1500 Vrms at sea level. The operating temperature range is -40°C to +105°C. For high-temperature soldering processes, the PCT insulator version can withstand up to 260°C per J-STD-020C (PBT version limited to 191°C).
The contact is made of copper alloy with a tin-lead finish of 100 µin (2.54 µm) over 50 µin nickel underplating. Insulation material is glass-filled polyester (PBT), rated UL94 V-0. The header is suitable for wave or IR soldering processes.
Packaging: This part is supplied in a through-hole, solder termination format. Contact finish is tin-lead, which provides good solderability for reliable connections.
The header has 10 positions.
The pitch is 2.54mm (0.100 inches).
The header is rated for 2.5 Amps.
The header can withstand 1500 Vrms at sea level.
The header is through-hole mounting with solder termination.
