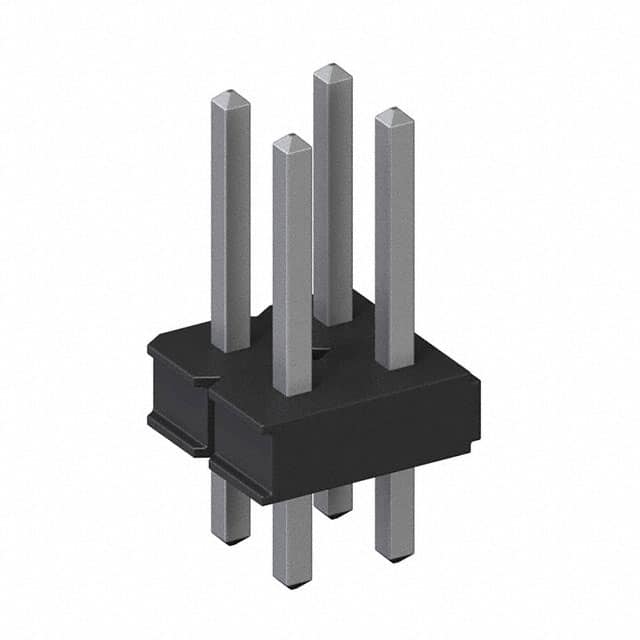

The 3M 929836-01-02 is a 4-position unshrouded male pin header from the 929 series. It is designed for board-to-board applications with a 2.54mm (0.100") pitch and through-hole mounting.
The header has two rows with all positions loaded. The contact material is copper alloy with a tin-lead finish (2.54µm). The insulation material is glass-filled PBT (polybutylene terephthalate) with a UL94 V-0 flammability rating. The connector is rated for a current of 2.5A and an operating temperature range of -40°C to +105°C.
It withstands a voltage of 1500 Vrms at sea level and has an insulation resistance greater than 5×10⁹ Ω at 500 VDC. The contact length is 5.97mm, and the overall contact length is 11.30mm. The insulation height is 2.54mm.
This unshrouded header is suitable for applications requiring a reliable, low-profile board-to-board connection. The push-pull fastening type allows easy mating and unmating. The through-hole termination ensures robust mechanical attachment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.51 | $0.51 |
| 10+ | $0.44 | $0.44 |
| 100+ | $0.36 | $0.36 |
| 500+ | $0.32 | $0.32 |
| 1,000+ | $0.26 | $0.26 |
| 5,000+ | $0.23 | $0.23 |
| 10,000+ | $0.21 | $0.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 929836-01-02 has 4 positions (2 rows of 2).
The pitch is 2.54mm (0.100").
The current rating is 2.5A.
It is through-hole mounting.
-40°C to +105°C.
1500 Vrms at sea level.
Glass filled PBT (polybutylene terephthalate) with UL94 V-0 rating.
