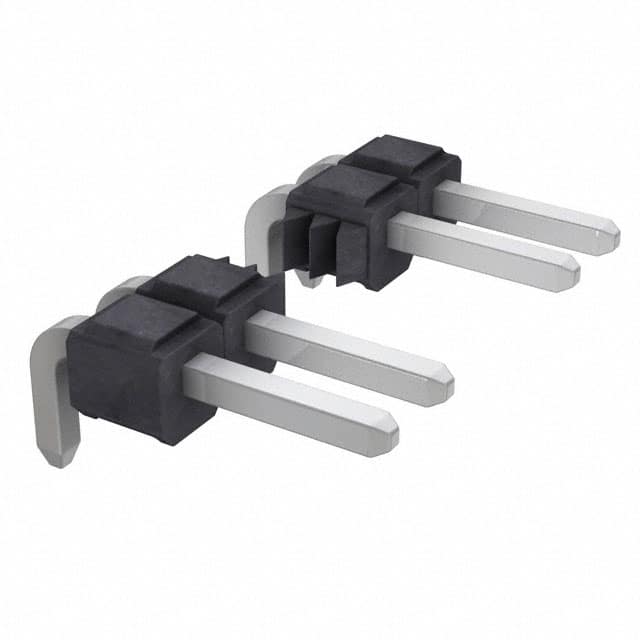

The 3M 929835-01-36 is a 36-position single row pin header from the 929 series. It features a right angle through hole mounting style with a 2.54mm (0.100") pitch, making it suitable for standard PCB layouts. The unshrouded header uses copper alloy contacts with a tin-lead plating of 100µin (2.54µm) over 50µin nickel underplating.
Electrical ratings include a current capacity of 2.5A and a withstanding voltage of 1500V RMS at sea level. Insulation resistance exceeds 5×10⁹ ohms at 500V DC. The operating temperature range is -40°C to 105°C. The insulator is made of glass filled polybutylene terephthalate (PBT) or polyester, colored black, with a UL94 V-0 flammability rating.
This connector is designed for board-to-board interconnect applications. The right angle orientation allows for low-profile connections when boards are mounted perpendicular. The breakaway feature (if applicable) is not explicitly confirmed but the part is a single row header. The product is rated for solder wave processing with a maximum insulator temperature of 191°C for PBT versions, while PCT versions can withstand 260°C per J-STD-020C.
Moisture sensitivity level is 1 (unlimited) per J-STD-020C for PCT parts. The UL file number is E68080. Note that RoHS and REACH compliance statuses are unverified from the datasheet; tin-lead plating may be non-compliant with RoHS.
| Qty | Low | High |
|---|---|---|
| 300+ | $1.84 | $1.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
36 positions, single row.
2.54mm (0.100").
2.5 A.
Through hole, right angle.
-40°C to 105°C.
Polybutylene Terephthalate (PBT), Polyester, Glass Filled.
Tin-Lead, 100µin (2.54µm).
