| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,270 pcs
|
6270 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Lead Spacing | |
| Material: Housing | |
| Max Wire Size | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Weight |

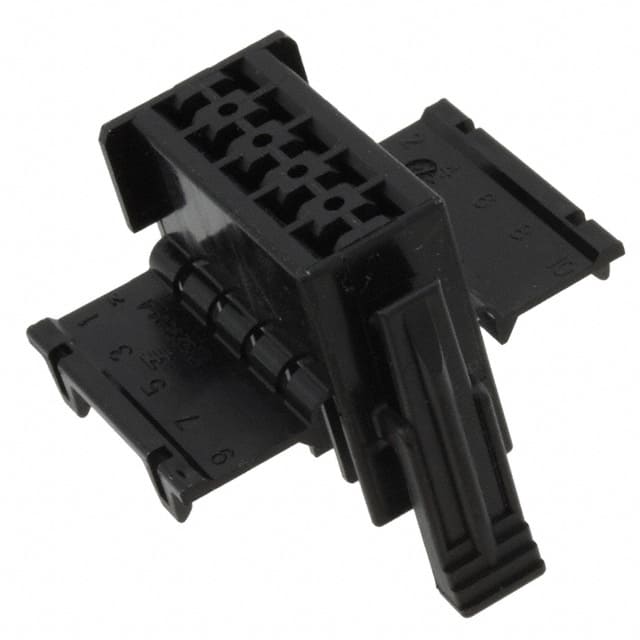

The TE Connectivity 929504-4 is a 10 position receptacle housing from the Junior Power Timer (JPT) series. It features a 5.00mm pitch and 2 rows with a row spacing of 5.60mm. The housing is designed for free hanging (in-line) mounting and accepts female socket contacts via crimp termination. The housing is made of black PBT material and weighs 4.6 grams. It supports a maximum wire size of 2.5 mm². This housing is suitable for use with Junior Power Timer contacts (part number 1355046) and mates with tab housings (929505) and tab headers (828801, 963357).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.94 | $0.94 |
| 10+ | $0.80 | $0.80 |
| 25+ | $0.75 | $0.75 |
| 50+ | $0.71 | $0.71 |
| 100+ | $0.68 | $0.68 |
| 250+ | $0.64 | $0.64 |
| 500+ | $0.61 | $0.61 |
| 1,200+ | $0.57 | $0.57 |
| 3,600+ | $0.53 | $0.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 929504-4 has 10 positions arranged in 2 rows.
The pitch is 5.00mm (0.197 inches).
The mounting type is free hanging (in-line).
It uses crimp termination for female socket contacts.
The housing is made of black PBT.
The maximum allowed wire size is 2.5 mm².
