| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

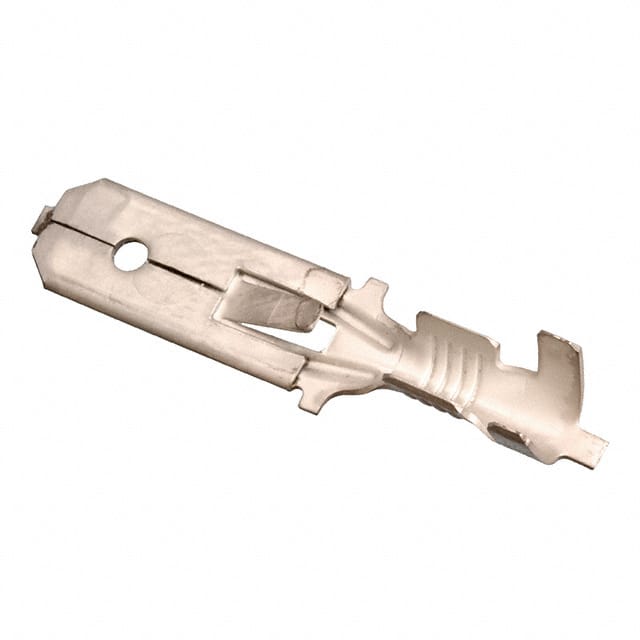

The TE Connectivity 928947-2 is a standard male quick connect tab terminal designed for free hanging (in-line) mounting. It accommodates wire gauges from 13.5 to 17 AWG and features a 0.250" (6.35mm) tab width with a tab length of 0.610" (15.50mm) and a tab thickness of 0.032" (0.81mm). The contact is made of brass with a tin finish, providing reliable conductivity and corrosion resistance.
This non-insulated terminal uses a crimp termination method, ensuring a secure mechanical and electrical connection. With an overall length of 1.102" (27.99mm), it is suitable for a variety of power and signal interconnection applications where a quick disconnect is required.
The part is RoHS3 compliant and has an MSL rating of 1 (unlimited). It is manufactured by TE Connectivity, a leading supplier of connectivity and sensor solutions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.48 | $0.48 |
| 10+ | $0.40 | $0.40 |
| 25+ | $0.38 | $0.38 |
| 50+ | $0.36 | $0.36 |
| 100+ | $0.34 | $0.34 |
| 250+ | $0.32 | $0.32 |
| 500+ | $0.31 | $0.31 |
| 1,000+ | $0.29 | $0.29 |
| 3,000+ | $0.27 | $0.27 |
| 6,000+ | $0.26 | $0.26 |
| 9,000+ | $0.25 | $0.25 |
| 15,000+ | $0.24 | $0.24 |
| 21,000+ | $0.24 | $0.24 |
| 30,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The tab width is 0.250" (6.35mm).
It accepts 13.5 to 17 AWG wire.
No, it is a non-insulated terminal.
The contact is made of brass with a tin finish.
The overall length is 27.99mm (1.102").
