| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accepts Wire Insulation Diameter Range | |
| Barrel Type | |
| China RoHS | |
| Contact Finish | |
| Contact Material | |
| Crimp Type | |
| ELV | |
| Gender | |
| Halogen Free | |
| Insulation | |
| Lead Style | |
| Locking Lance Height | |
| Mating Retention Type | |
| Mounting Type | |
| Operating Temperature Range | |
| Overall Length | |
| Packaging Method | |
| Packaging Quantity | |
| Standard Package Quantity | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge | |
| Wire Size (CMA) |

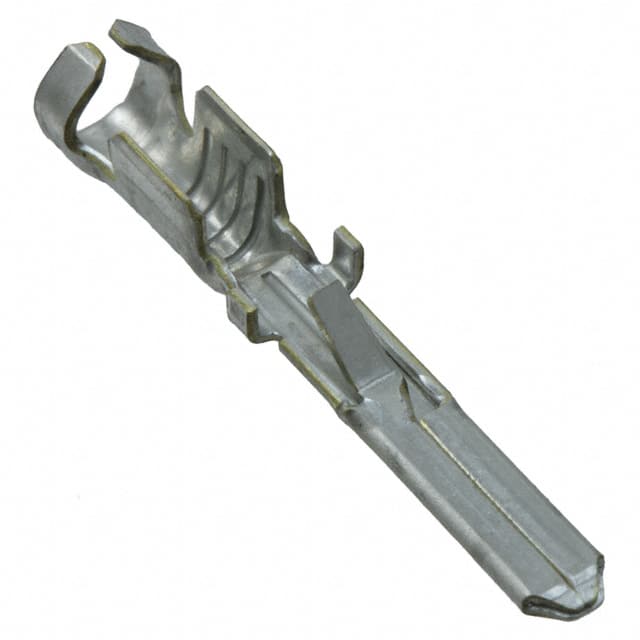

The 928781-2 is a male tab quick disconnect terminal from TE Connectivity's FASTIN-FASTON 110 series. Designed for 13-17 AWG wire, it provides reliable electrical connections in quick disconnect applications.
This terminal features a tin-plated CuZn30 contact material and an F-crimp open barrel design. The locking lance mating retention ensures secure engagement with mating receptacles. It accepts wire insulation diameters from 1.8 to 2.9 mm and has an operating temperature range of -40 to 130 °C.
The non-insulated terminal is intended for free hanging (in-line) mounting. It is suitable for both power and signal wire terminations in automotive, industrial, and consumer electronics applications.
Packaged in reels of 3500, the 928781-2 is supplied in loose piece format for automated crimping processes. It is compliant with RoHS, REACH, and ELV directives.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.29 | $0.29 |
| 10+ | $0.25 | $0.25 |
| 25+ | $0.23 | $0.23 |
| 50+ | $0.22 | $0.22 |
| 100+ | $0.21 | $0.21 |
| 250+ | $0.20 | $0.20 |
| 500+ | $0.19 | $0.19 |
| 1,000+ | $0.18 | $0.18 |
| 3,500+ | $0.16 | $0.16 |
| 7,000+ | $0.15 | $0.15 |
| 10,500+ | $0.15 | $0.15 |
| 17,500+ | $0.14 | $0.14 |
| 24,500+ | $0.14 | $0.14 |
| 35,000+ | $0.14 | $0.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
13-17 AWG.
-40 to 130 °C.
Tin.
3500.
No, it is non-insulated.
F-crimp.
Free hanging (in-line).
