| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Circuit Application | |
| Color | |
| Connector Length | |
| Connector System | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| EU ELV | |
| Glow Wire Rating | |
| Halogen Content | |
| Halogen Free | |
| Housing Color | |
| Housing Material | |
| Keying & Polarized Rib Location | |
| Lead Spacing | |
| Locking Latch Location | |
| Mating Retention | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| PCB Mount Retention | |
| Packaging Method | |
| Packaging Quantity | |
| Panel Mount Feature | |
| Pitch | |
| Pitch (Lead Spacing) | |
| Sealable | |
| Standard Package Quantity | |
| Strain Relief | |
| Termination Style | |
| UL Flammability Rating | |
| connector_height |

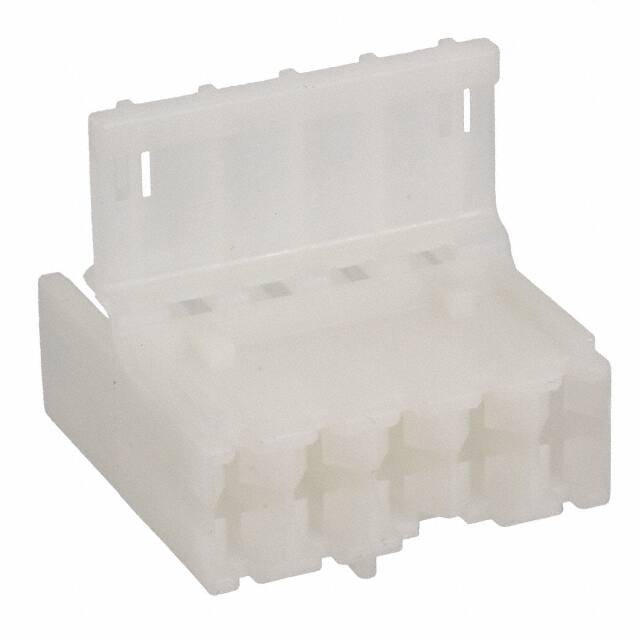

The TE Connectivity 928343-5 is a receptacle housing from the RAST 5 IDC Connectors series, designed for wire-to-wire connections. It accommodates 5 positions in a single row with a 5.00 mm pitch, using crimp termination for reliable wire attachment. The housing is made of natural PA 6.6 material with a UL 94V-2 flammability rating, suitable for power and signal circuit applications.
This free-hanging (in-line) connector housing includes a mating retention latch located between cavities 2 and 3, ensuring secure connection. It is keyed with polarized rib location 1a/5b to prevent misalignment. The part is not sealable, does not include strain relief or panel mount features, and is not designed for PCB mounting.
Operating temperature range is -55°C to 105°C. The housing is low halogen and compliant with RoHS, REACH, China RoHS, and EU ELV directives. It is packaged in bags of 2000 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.18 | $1.18 |
| 10+ | $1.00 | $1.00 |
| 25+ | $0.94 | $0.94 |
| 50+ | $0.90 | $0.90 |
| 100+ | $0.85 | $0.85 |
| 250+ | $0.80 | $0.80 |
| 500+ | $0.76 | $0.76 |
| 2,000+ | $0.69 | $0.69 |
| 4,000+ | $0.66 | $0.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 928343-5 has 5 positions in a single row.
The pitch is 5.00 mm.
It is a free hanging (in-line) connector housing, not designed for panel or PCB mounting.
The operating temperature range is -55°C to 105°C.
Yes, it is compliant with EU RoHS Directive 2011/65/EU.
The housing is made of PA 6.6 with a UL 94V-2 flammability rating.
