| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Halogen Free | |
| Insulation | |
| Lead Style | |
| Length | |
| Mating Retention Type | |
| Mounting Type | |
| Operating Temperature Range | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

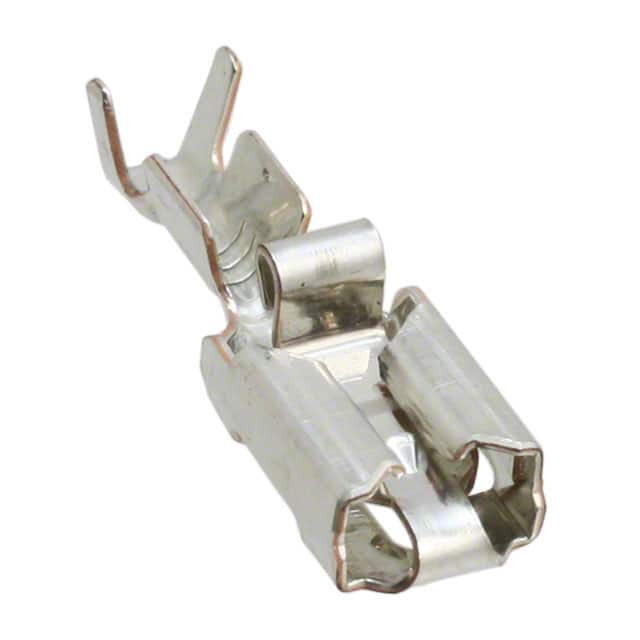

The TE Connectivity 927854-7 is a Positive Lock 250 series quick disconnect receptacle. It is a female terminal designed for free hanging (in-line) mounting with crimp termination. The receptacle accepts wire sizes from 13.5 to 17 AWG (1.03–2.62 mm²) and has a mating tab width of 6.35 mm (0.250 in) and tab thickness of 0.81 mm (0.032 in). The contact is made of phosphor bronze with a pre-tin plating. It is non-insulated and features a dimple mating retention type. The operating temperature range is -40 to 110 °C. Packaging is in strip/reel with a quantity of 1500. This component is RoHS, REACH, ELV, and China RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
| 10+ | $0.33 | $0.33 |
| 25+ | $0.31 | $0.31 |
| 50+ | $0.29 | $0.29 |
| 100+ | $0.28 | $0.28 |
| 250+ | $0.26 | $0.26 |
| 500+ | $0.25 | $0.25 |
| 1,500+ | $0.23 | $0.23 |
| 3,000+ | $0.22 | $0.22 |
| 4,500+ | $0.21 | $0.21 |
| 7,500+ | $0.21 | $0.21 |
| 10,500+ | $0.20 | $0.20 |
| 15,000+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
13.5-17 AWG.
6.35 mm (0.250 in).
Phosphor Bronze.
-40 to 110 °C.
Yes, EU RoHS Directive 2011/65/EU Compliant.
1500 per strip/reel.
Crimp (F-crimp).
