| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS 2 | |
| Contact Finish | |
| Contact Termination | |
| Crimp Type | |
| Current Rating (Transmits) (Maximum @ Maximum) | |
| Current Rating (Transmits) (Minimum @ Minimum) | |
| EU ELV | |
| Halogen Free | |
| Insulation Option | |
| Lead Style | |
| Mating Tab Thickness | |
| Mating Tab Width | |
| Operating Temperature Range | |
| Packaging Method | |
| Packaging Quantity | |
| Pin or Socket | |
| Plating Material (Nominal @ Interface) | |
| Plating Material (Nominal @ Termination Area) | |
| Primary Locking Feature | |
| Receptacle Style | |
| SVHC Present | |
| Sealable | |
| Terminal Type | |
| Type | |
| Typical Current Rating | |
| Wire Gauge | |
| Wire Insulation Diameter | |
| Wire Size (AWG) | |
| Wire Size (mm²) |

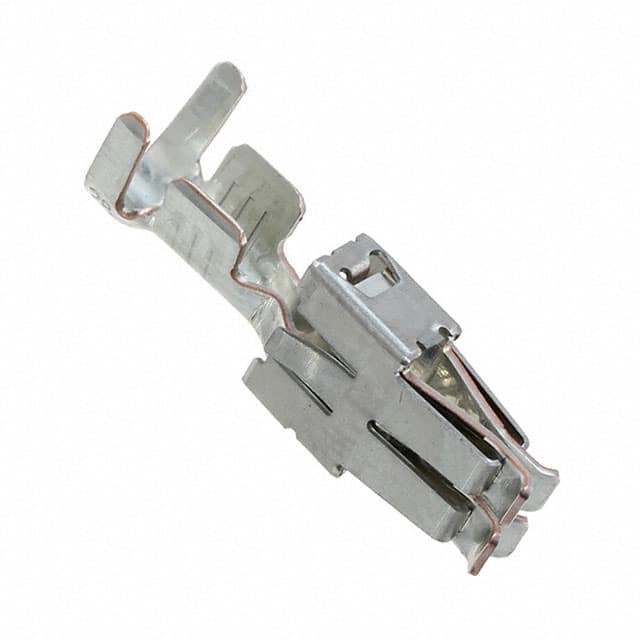

The TE Connectivity 927833-1 is a Standard Power Timer receptacle terminal designed for automotive and industrial power applications. This socket-type terminal features an F-crimp termination and accepts wire sizes from 17 to 14 AWG (1 to 2.5 mm²) with an insulation diameter range of 2.7 to 3.7 mm.
Key electrical specifications include a typical current rating of 40 A, with a minimum of 25 A and maximum of 40 A. The terminal mates with tabs of 5.8 mm or 6.3 mm width and 0.8 mm thickness. It operates over a temperature range of -40 to 130 °C.
Construction features tin plating on both the interface and termination area. The terminal is uninsulated and includes a locking lance primary locking feature. It is not sealable. Compliance includes RoHS3, REACH, Halogen Free, EU ELV, and China RoHS 2.
The terminal is packaged in cartons of 2000 pieces. It is designed for crimp termination to wire and is compatible with copper wire base material.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.37 | $0.37 |
| 10+ | $0.32 | $0.32 |
| 25+ | $0.30 | $0.30 |
| 50+ | $0.28 | $0.28 |
| 100+ | $0.27 | $0.27 |
| 250+ | $0.25 | $0.25 |
| 500+ | $0.24 | $0.24 |
| 1,000+ | $0.23 | $0.23 |
| 2,000+ | $0.22 | $0.22 |
| 4,000+ | $0.21 | $0.21 |
| 6,000+ | $0.20 | $0.20 |
| 10,000+ | $0.20 | $0.20 |
| 14,000+ | $0.19 | $0.19 |
| 20,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Typical current rating is 40 A, with a range of 25 A to 40 A.
17-14 AWG (1-2.5 mm²).
-40 to 130 °C.
5.8 mm and 6.3 mm.
No, it is not sealable.
Tin (Sn) on both interface and termination area.
2000 pieces per carton.
