| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45,541 pcs
|
45541 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
700 pcs
|
700 pcs | On Request | 100 | On Request | On Request | On Request | On Request | On Request | |
|
208 pcs
|
208 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
85 pcs
|
85 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Base Material | |
| Contact Diameter | |
| Contact Finish | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| ELV | |
| High Current | |
| Insulation Diameter (Max) | |
| Lead Style | |
| Packaging Method | |
| Pin or Socket | |
| Product Line | |
| Sealable | |
| Type | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Range |

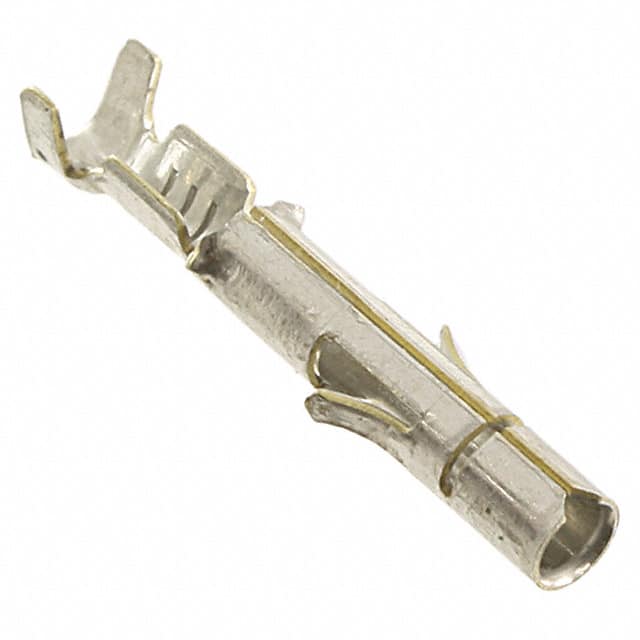

The 926895-1 is a stamped brass crimp socket contact from TE Connectivity's Universal MATE-N-LOK product line. It accepts 18-24 AWG wire (0.20-0.80 mm²) with a maximum insulation diameter of 2.50 mm. The contact is tin plated and rated for 19 A at 600 VAC.
This non-sealable, non-high-current contact is designed for use with Universal MATE-N-LOK housings. It is RoHS and ELV compliant. The contact diameter is 2.13 mm.
The contact is supplied as loose piece and terminated via crimping. It is suitable for wire-to-wire and wire-to-board applications in power and signal circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.17 | $0.17 |
| 10+ | $0.15 | $0.15 |
| 25+ | $0.14 | $0.14 |
| 50+ | $0.13 | $0.13 |
| 100+ | $0.13 | $0.13 |
| 250+ | $0.12 | $0.12 |
| 500+ | $0.11 | $0.11 |
| 1,000+ | $0.11 | $0.11 |
| 3,000+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts 18-24 AWG wire (0.20-0.80 mm²).
19 A.
600 VAC.
Crimp termination.
No, it is not sealable.
Brass.
2.50 mm (0.098 in).
