| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
56,780 pcs
|
56780 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,040 pcs
|
1040 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
528 pcs
|
528 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
52 pcs
|
52 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit Application | |
| Connector Mounting Type | |
| Contact Base Material | |
| Contact Finish | |
| Contact Mating Area Plating | |
| Contact Retention Type | |
| Contact Termination | |
| Contact Type | |
| For Use With | |
| Halogen Free | |
| Lead Style | |
| Mating Pin Diameter | |
| Packaging Method | |
| Packaging Quantity | |
| Pin or Socket | |
| Standard Package Quantity | |
| Termination Method | |
| Wire Contact Termination Area Plating | |
| Wire Gauge | |
| Wire Gauge (AWG) | |
| Wire Insulation Diameter (Max) | |
| Wire Size (mm²) | |
| Wire Type |

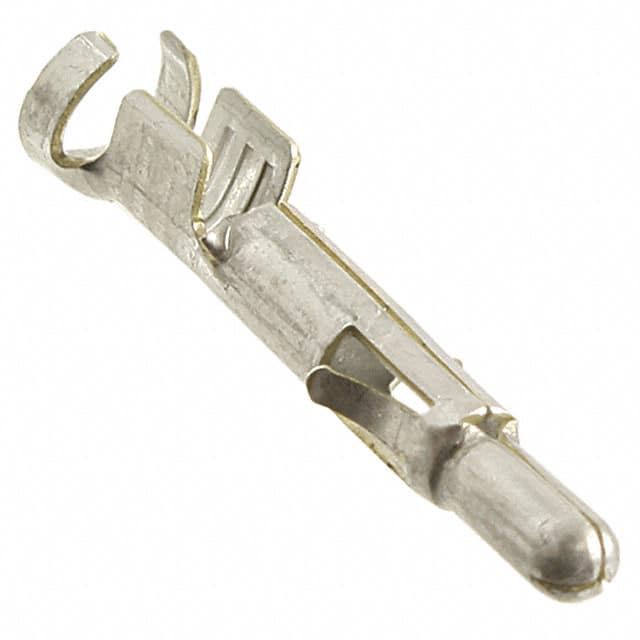

The TE Connectivity 926894-1 is a power pin contact from the Universal MATE-N-LOK series, designed for wire-to-wire power applications. It accepts 14 to 20 AWG stranded wire with a maximum insulation diameter of 3.3 mm. The contact features a pre-tin plated mating area and matte tin plated termination area over a brass base material. Termination is by crimp method, and the contact is retained within the housing via a locking lance. It is rated for use with Universal MATE-N-LOK plug or socket housings and is suitable for cable mount (free-hanging) configurations. The contact is RoHS3 compliant, REACH compliant (does not contain SVHC), and qualifies as halogen free per IEC 61249-2-21. Packaging is in boxes of 2000 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.45 | $0.45 |
| 10+ | $0.38 | $0.38 |
| 25+ | $0.36 | $0.36 |
| 50+ | $0.34 | $0.34 |
| 100+ | $0.33 | $0.33 |
| 250+ | $0.31 | $0.31 |
| 500+ | $0.29 | $0.29 |
| 2,000+ | $0.26 | $0.26 |
| 4,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts 14 to 20 AWG stranded wire.
Crimp termination.
2.06 mm.
Yes, RoHS3 compliant (2011/65/EU).
Universal MATE-N-LOK plug or socket housing.
2000 pieces per box.
