| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,400 pcs
|
8400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA Certified | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Features | |
| Glow Wire (IEC 60335-1) | |
| Housing Material | |
| Industrial Grade | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Panel Thickness Range | |
| Pitch | |
| UL 94 V-0 | |
| UL Recognized | |
| VDE Approved | |
| Voltage Rating |

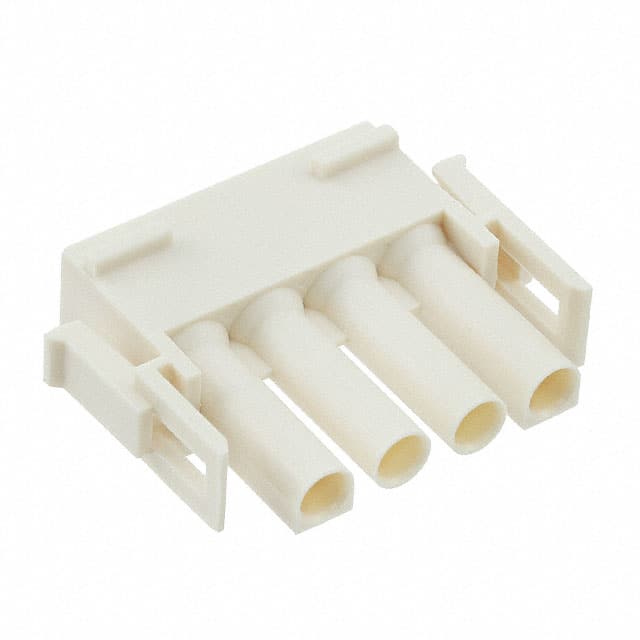

The TE Connectivity 926298-7 is a 4-position single row plug housing from the Universal MATE-N-LOK series. It features a 6.35mm (0.250") centerline pitch and is designed for panel mount applications with a latch lock fastening mechanism. The housing is made of natural color Nylon PA 66 material and accommodates panel thicknesses from 0.76mm to 2.29mm.
This plug housing is rated for 600VAC and 19A maximum current. It accepts female socket contacts with crimp termination. The operating temperature range is -55°C to 125°C. The housing is suitable for wire-to-wire and wire-to-panel applications, and pins and sockets can be intermixed in the same housing.
The housing meets UL 94 V-0 and Glow Wire test (GWT) according to IEC 60335-1 (750°C without flame). It is UL recognized (File E28476), CSA certified (File LR7189), and VDE approved (Certificate 40023469). Compliance with RoHS and REACH is unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.03 | $1.03 |
| 10+ | $0.87 | $0.87 |
| 25+ | $0.82 | $0.82 |
| 50+ | $0.78 | $0.78 |
| 100+ | $0.74 | $0.74 |
| 250+ | $0.70 | $0.70 |
| 500+ | $0.66 | $0.66 |
| 1,200+ | $0.62 | $0.62 |
| 3,600+ | $0.58 | $0.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions in a single row.
6.35mm (0.250 inch) centerline pitch.
19A maximum current rating.
600VAC maximum voltage rating.
Panel mount with latch lock fastening.
-55°C to 125°C.
Nylon PA 66.
