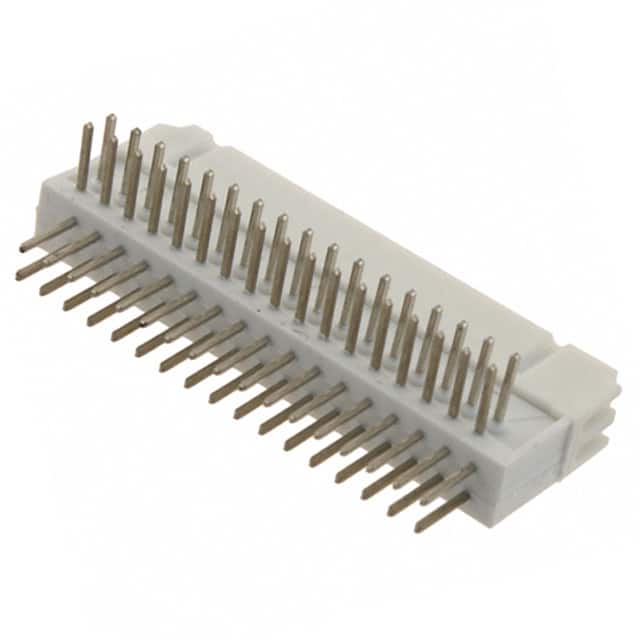

922576-34-I The 3M Electronic Solutions 922576-34-I is a 34-pin intra-connector designed for prototyping applications. It offers a dielectric strength of 1000 VDC and a current rating of 1A DC.
Mfr Part #:

922576-34-I

Available from 1 distributors
Mfr Name: 3M Electronic Solutions
3M Electronic Solutions
The 3M Electronic Solutions 922576-34-I is a 34-pin intra-connector designed for prototyping applications. It offers a dielectric strength of 1000 VDC and a current rating of 1A DC.
✓ Total Stock: 50 pcs
$ Price Range: $0.99

922576-34-I Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

922576-34-I Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Contact Material
Current Rating
For Use With
Insulator Material
Lead Spacing
Number of Contacts
View Similar Products (0)

922576-34-I Description

Short technical summary and product information.

The 3M Electronic Solutions 922576-34-I is a 34-pin intra-connector, categorized under prototyping and fabrication accessories. This component is designed for use with standard 0.1" x 0.1" (2.54mm x 2.54mm) dual-row connectors or PCB mount 0.025" (0.64mm) square pins.



Key electrical specifications include a dielectric withstanding voltage of 1000 VDC and a current rating of 1 Ampere DC. Mechanical characteristics are defined by an insertion force of 120 GMS/contact nominal and a withdrawal force of 95 GMS/contact nominal. The insulator is constructed from glass-filled PBT resin, and the contacts are made of Cu 770 with Nickel A 18 plating.



This intra-connector is suitable for various prototyping and development projects where reliable connections are essential. Its robust construction and defined electrical parameters make it a dependable choice for engineers designing custom circuits and interfaces.

922576-34-I Quick Information

Product Type: Intra-Connector
Series: Intra-Connector™
Canonical Name: 3M Electronic Solutions 922576-34-I Intra-Connector
Subcategory: Accessories

922576-34-I Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

922576-34-I Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

922576-34-I Features

  • 34-pin intra-connector for prototyping.
  • 1000 VDC dielectric withstanding voltage.
  • Rated for 1 Ampere DC current.
  • Glass-filled PBT resin insulator.
  • Cu 770 contacts with Nickel plating.

922576-34-I Applications

  • Suitable for PCB interconnection in prototyping.
  • Used in industrial automation connector assemblies.
  • Ideal for electronic testing and development setups.
  • Applicable in custom electronic module connections.

922576-34-I FAQs

5 frequently asked questions generated from this part’s specifications.
What is the dielectric strength of the 922576-34-I intra-connector?

The dielectric strength is 1000 VDC.

What is the current rating for the 922576-34-I connector?

The current rating is 1 Ampere DC.

What are the insertion and withdrawal forces for this connector?

The insertion force is 120 GMS/contact nominal, and the withdrawal force is 95 GMS/contact nominal.

What materials are used for the insulator and contacts?

The insulator is made of glass-filled PBT resin, and the contacts are Cu 770 with Nickel A 18 plating.

What is the standard package quantity for the 922576-34-I?

The standard package quantity is 10.
