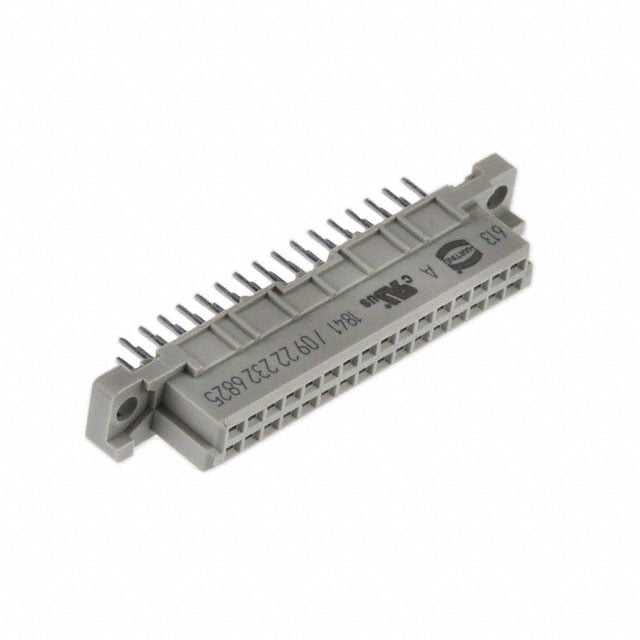

9222326825 The HARTING 9222326825 is a DIN 41612 receptacle connector featuring 32 positions and a 2.54mm pitch. It is designed for through-hole mounting with solder termination.
Mfr Part #:

9222326825

Available from 1 distributors
Mfr Name: Harting
Harting
The HARTING 9222326825 is a DIN 41612 receptacle connector featuring 32 positions and a 2.54mm pitch. It is designed for through-hole mounting with solder termination.
✓ Total Stock: 172 pcs
$ Price Range: $0.22

9222326825 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
172 pcs
On Request
172 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

9222326825 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Style
Termination Style
View Similar Products (0)

9222326825 Description

Short technical summary and product information.

The HARTING 9222326825 is a DIN 41612 receptacle connector, part of the HARTING Connectors, Interconnects product line. This component features 32 positions arranged in 2 rows, with a standard pitch of 2.54mm. It is designed for through-hole mounting and utilizes solder termination.



The insulation material is Thermoplastic, Glass Filled, with a flammability rating of UL94 V-0, indicating good resistance to fire. The connector is specified as RoHS3 Compliant, REACH Unaffected, and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.



This connector is suitable for various industrial and automation applications requiring reliable power and signal transmission. Its construction is intended to offer durability in demanding environments, resisting mechanical stress and vibration.

9222326825 Quick Information

Product Type: DIN 41612 Receptacle Connector
Series: DIN 41612
Canonical Name: HARTING 9222326825 DIN 41612 Receptacle Connector
Subcategory: DIN 41612 Receptacle

9222326825 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

9222326825 Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

9222326825 Features

  • 32 positions in 2 rows.
  • 2.54mm pitch for precise connections.
  • Through-hole mounting for PCB integration.
  • Solder termination for secure connections.
  • UL94 V-0 flammability rating.

9222326825 Applications

  • Industrial machinery connections.
  • Automation systems for data transmission.
  • Robotics and control systems.
  • Power and signal transmission.
  • Transport and infrastructure applications.

9222326825 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the number of positions on the HARTING 9222326825 connector?

The HARTING 9222326825 connector has 32 positions.

What is the pitch of the HARTING 9222326825 connector?

The pitch of the HARTING 9222326825 connector is 2.54mm.

How is the HARTING 9222326825 connector mounted?

The HARTING 9222326825 connector is mounted using the through-hole method.

What is the flammability rating of the HARTING 9222326825 connector's insulation material?

The insulation material of the HARTING 9222326825 connector has a flammability rating of UL94 V-0.

What are the common applications for the HARTING 9222326825 model?

The HARTING 9222326825 model is commonly used in industrial machinery connections, automation systems for efficient data transmission, robotics and control systems, and power and signal transmission in harsh environments.
