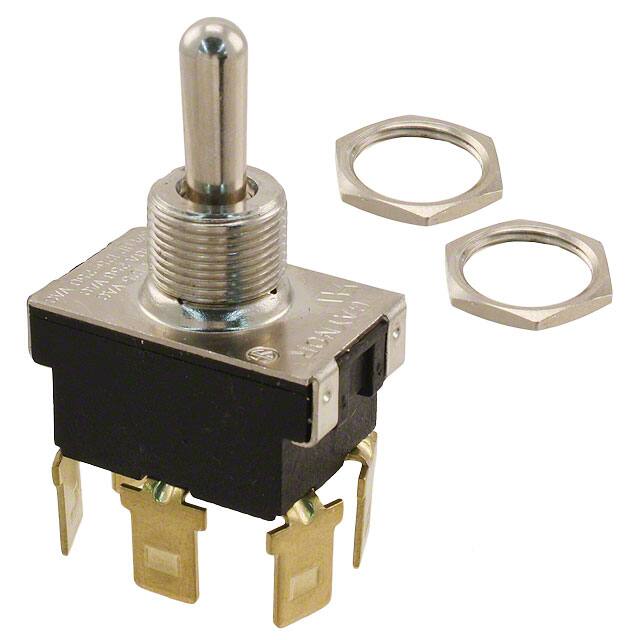

9202C The Electroswitch 9202C is a DPDT toggle switch rated for 20A at 125VAC. It features a non-illuminated, On-Off-On function and panel mount design.
Mfr Part #:

9202C

Available from 1 distributors
Mfr Name: Electroswitch
Electroswitch
The Electroswitch 9202C is a DPDT toggle switch rated for 20A at 125VAC. It features a non-illuminated, On-Off-On function and panel mount design.
✓ Total Stock: 206 pcs
$ Price Range: $0.75

9202C Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
206 pcs
On Request
206 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

9202C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Type
Bushing Thread
Circuit
Current Rating (Amps)
Illumination
Mounting Type
Operating Temperature
Storage Temperature
Switch Function
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

9202C Description

Short technical summary and product information.

The Electroswitch 9202C is a full-size power toggle switch designed for robust applications. It offers a DPDT (Double Pole, Double Throw) circuit configuration with an On-Off-On function, providing versatile control options.



This switch is rated for a significant current of 20A at 125VAC, making it suitable for power switching tasks. The actuator is a standard round type with a length of 14.27mm, and the bushing thread is 15/32-32 for secure panel mounting.



Designed for non-illuminated operation, the 9202C features quick connect termination style for easy and reliable connections. Its operating temperature range is from -10°C to 65°C, ensuring performance in various environmental conditions. The switch is designed for panel mounting, offering a secure and accessible control point in equipment and systems.

9202C Quick Information

Product Type: Toggle Switch
Series: 9200
Canonical Name: Electroswitch 9202C Toggle Switch
Subcategory: Toggle Switches

9202C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

9202C Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

9202C Features

  • DPDT circuit configuration for versatile control.
  • Rated for 20A at 125VAC for power applications.
  • Panel mount design with quick connect termination.
  • Standard round actuator with 15/32-32 bushing thread.
  • Operates within a -10°C to 65°C temperature range.

9202C Applications

  • Suitable for power control circuits.
  • Used in industrial equipment panels.
  • Ideal for general purpose switching needs.
  • Facilitates easy connection via quick terminals.

9202C FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the Electroswitch 9202C toggle switch?

The Electroswitch 9202C toggle switch has a current rating of 20A at 125VAC.

What voltage can the 9202C toggle switch handle?

The 9202C toggle switch is rated for 125 VAC.

What type of circuit does the 9202C toggle switch use?

The 9202C toggle switch features a DPDT (Double Pole, Double Throw) circuit.

What is the switch function of the 9202C?

The switch function for the 9202C is On-Off-On.

How is the 9202C toggle switch mounted?

The 9202C toggle switch is designed for panel mounting.

What is the operating temperature range for the 9202C toggle switch?

The operating temperature range for the 9202C toggle switch is -10°C to 65°C.
