| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
452 pcs
|
452 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Diameter | |
| Actuator Length | |
| Actuator Type | |
| Adjustment Type | |
| Built in Switch | |
| Bushing Thread | |
| Lead Style | |
| Mounting Type | |
| Number of Gangs | |
| Number of Turns | |
| Power (Watts) | |
| Resistance (Ohms) | |
| Resistive Material | |
| Rotation | |
| Storage Temperature | |
| Tape & Reel | |
| Taper | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

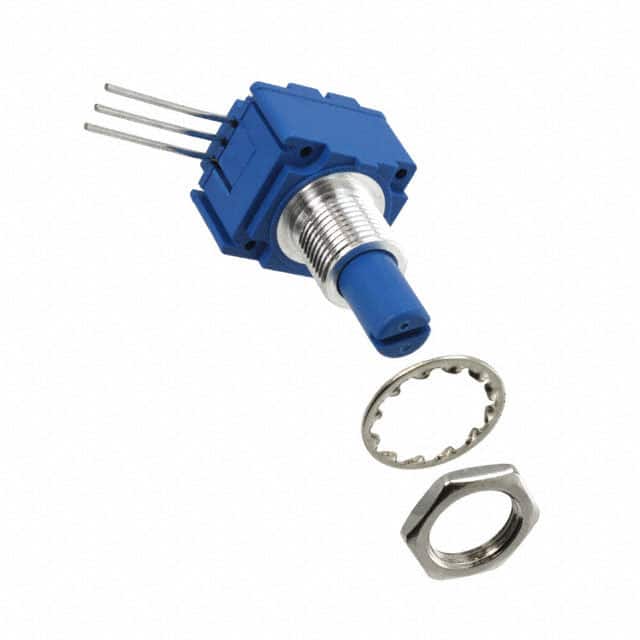

This Bourns 91A1A-B28-B13 is a linear rotary potentiometer designed for panel mounting. It offers a resistance value of 5k Ohms with a tolerance of ±20% and a power rating of 1W. The potentiometer features a conductive plastic resistive material and a 1-gang configuration.
With a 300° rotation angle and a slotted actuator, this component is suitable for applications requiring precise manual adjustment. The termination style is PC pins, and it has a side adjustment type. The series is designated as 91.
Key electrical characteristics include a temperature coefficient of ±1000ppm/°C. The mechanical specifications include a 0.875" (22.23mm) actuator length and a 0.250" (6.35mm) actuator diameter, with a 3/8-32 bushing thread for secure panel mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 5k Ohm.
The power rating is 1W.
It has a linear taper.
It has 1 turn.
The resistive material is conductive plastic.
The rotation angle is 300°.
It is designed for panel mount.
