| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

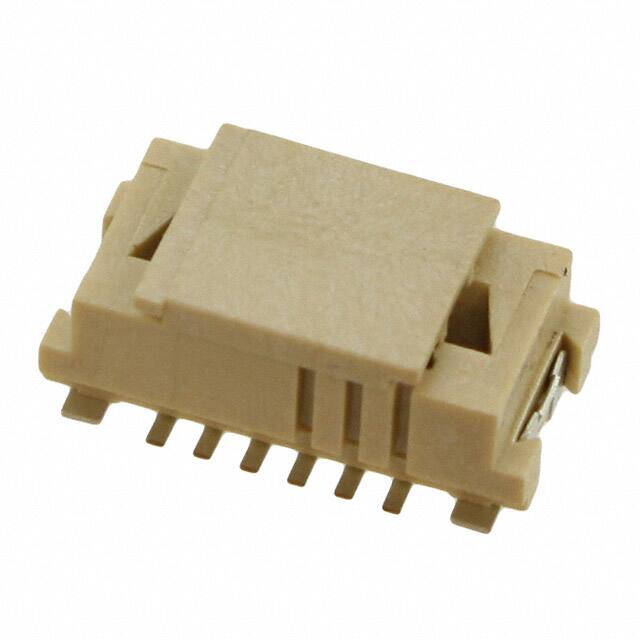

The Amphenol ICC 91931-31111LF is an 11 position receptacle connector designed for mezzanine (board-to-board) applications. It features a 1.00mm (0.039") pitch and a 2-row configuration, with contacts finished in Gold or Gold, GXT™ (15.0µin (0.38µm)).
The component supports a height above board of 0.129" (3.28mm). It is designed to accommodate a range of mated stacking heights: 4.15mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, and 7.52mm. Key mechanical features include an integrated board guide and solder retention, which aid in alignment and reliability during assembly.
Connector type is Receptacle, Outer Shroud Contacts. Mounting type is Surface Mount, making it suitable for automated pick-and-place processes used in high-density circuit board assemblies. This part belongs to the Amphenol ICC 91931 series of connectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.12 | $3.12 |
| 10+ | $2.65 | $2.65 |
| 25+ | $2.48 | $2.48 |
| 50+ | $2.36 | $2.36 |
| 100+ | $2.25 | $2.25 |
| 250+ | $2.11 | $2.11 |
| 800+ | $1.94 | $1.94 |
| 1,600+ | $1.85 | $1.85 |
| 2,400+ | $1.80 | $1.80 |
| 4,000+ | $1.74 | $1.74 |
| 5,600+ | $1.70 | $1.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 11 positions.
The pitch is 1.00mm (0.039").
It uses Surface Mount mounting.
Supported stacking heights are 4.15mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, and 7.52mm.
The contact finish is Gold or Gold, GXT™, with a thickness of 15.0µin (0.38µm).
