| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

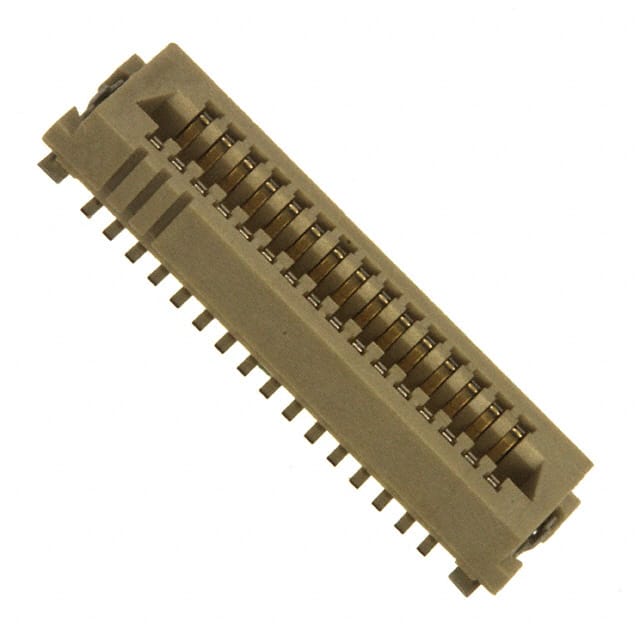

The Amphenol ICC 91930-21131LF is a 31 position receptacle connector featuring outer shroud contacts. It has a 1.00mm pitch and a 2-row configuration, designed for surface mount attachment. The connector offers a mated stacking height range from 4.15mm to 7.52mm, accommodating various board-to-board spacing requirements.
Contact finish is gold or Gold, GXT™ with a thickness of 15.0µin (0.38µm). The connector includes board guide and solder retention features for reliable assembly. The height above board is 0.129" (3.28mm).
This connector is suitable for mezzanine (board-to-board) applications where a compact, high-density interconnect is needed. It is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $4.73 | $4.73 |
| 10+ | $4.02 | $4.02 |
| 29+ | $3.73 | $3.73 |
| 58+ | $3.55 | $3.55 |
| 116+ | $3.38 | $3.38 |
| 261+ | $3.19 | $3.19 |
| 522+ | $3.04 | $3.04 |
| 1,015+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.00mm (0.039").
It has 31 positions arranged in 2 rows.
It uses surface mount technology.
The contact finish is gold or Gold, GXT™ with a thickness of 15.0µin (0.38µm).
Supported mated stacking heights are 4.15mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, and 7.52mm.
